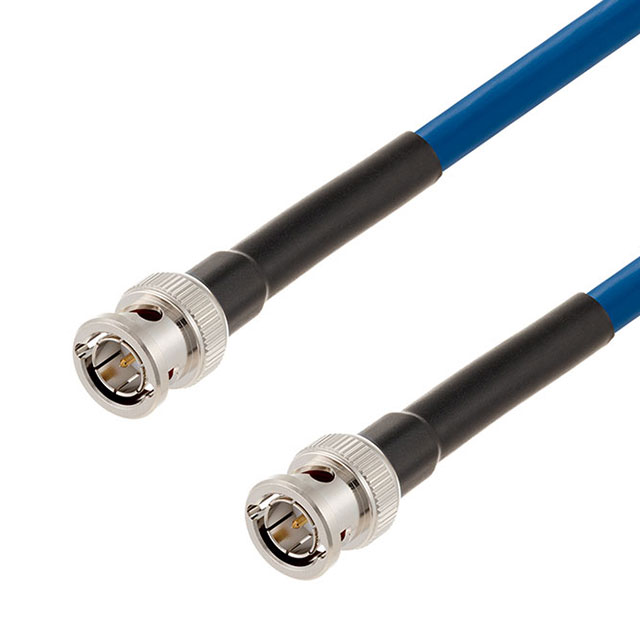

PE3C8741/BL-72
ActivePasternack
CBL ASSY BNC PLUG TO PLUG 6'
PE3C8741/BL-72
ActivePasternack
CBL ASSY BNC PLUG TO PLUG 6'
Description
General part information
PE3C8741/BL-72
Cable Assembly Coaxial BNC to BNC Belden 4694R 72.0" (1.8m) 6.0'
Technical Specifications
Parameters and characteristics for this part
| Specification | PE3C8741/BL-72 |
|---|---|
| 1st Connector | BNC Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | BNC Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 75 Ohms |
| Cable Type | Belden 4694R |
| Color | Blue |
| Connector Impedance | 75 Ohms |
| Frequency - Max | 12 Gbps |
| Length | 72 in |
| Operating Temperature (Max) | 75 °C |
| Operating Temperature (Min) | -30 °C |
| Overall Impedance | 75 Ohms |
| Style | BNC |
