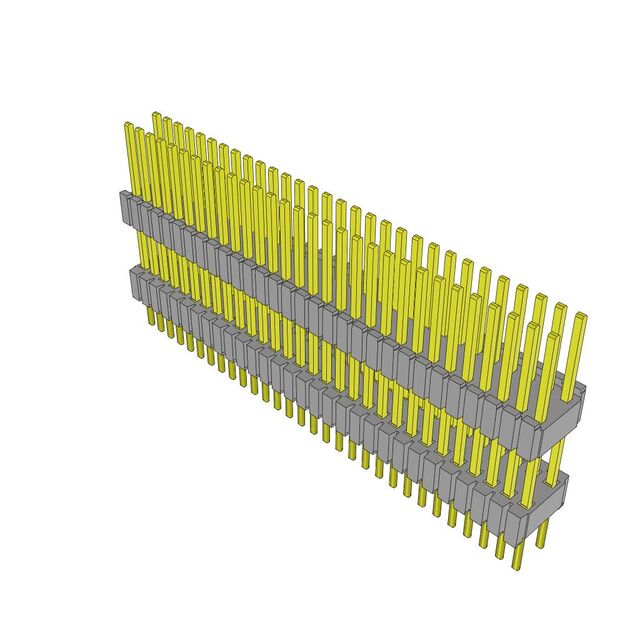

Specification	HDWM-30-58-S-D-374

Color	Black
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	30 µin
Length - Overall Pin	0.705 in
Length - Post (Mating)	0.211 in
Length - Stack Height	0.374 in
Length - Tail	0.12 in
Mounting Type	Through Hole
Number of Positions	60
Number of Rows	2
Pitch	0.05 in
Row Spacing	0.1 in
Termination	Solder

HDWM-30 Series

Part	Number of Positions	Termination	Number of Rows	Contact Finish Thickness - Post (Mating)	Length - Stack Height	Row Spacing	Length - Post (Mating)	Pitch	Color	Contact Finish - Post (Mating)	Mounting Type	Length - Overall Pin	Length - Tail
Samtec Inc. HDWM-30-54-S-D-270-SM-A	60	Solder	2	30 µin	0.27 in	0.1 in	0.285 in	0.05 in	Black	Gold	Surface Mount	0.555 in
Samtec Inc. HDWM-30-59-S-D-515-SM	60	Solder	2	30 µin	0.515 in	0.1 in	0.465 in	0.05 in	Black	Gold	Surface Mount	0.98 in
Samtec Inc. HDWM-30-59-S-D-500-SM	60	Solder	2	30 µin	0.5 in	0.1 in	0.465 in	0.05 in	Black	Gold	Surface Mount	0.965 in
Samtec Inc. HDWM-30-53-G-D-280-SM-A	60	Solder	2	10 µin	0.28 in	0.1 in	0.235 in	0.05 in	Black	Gold	Surface Mount	0.515 in
Samtec Inc. HDWM-30-55-S-D-260	60	Solder	2	30 µin	0.26 in	0.1 in	0.23 in	0.05 in	Black	Gold	Through Hole	0.61 in	0.12 in
Samtec Inc. HDWM-30-54-S-D-260-SM	60	Solder	2	30 µin	0.26 in	0.1 in	0.285 in	0.05 in	Black	Gold	Surface Mount	0.545 in
Samtec Inc. HDWM-30-53-S-D-255-SM	60	Solder	2	30 µin	0.255 in	0.1 in	0.235 in	0.05 in	Black	Gold	Surface Mount	0.49 in
Samtec Inc. HDWM-30-01-S-D-250	60	Solder	2	30 µin	0.25 in	0.1 in	0.08 in	0.05 in	Black	Gold	Through Hole	0.45 in	0.12 in
Samtec Inc. HDWM-30-59-S-D-510-SM	60	Solder	2	30 µin	0.51 in	0.1 in	0.465 in	0.05 in	Black	Gold	Surface Mount	0.975 in
Samtec Inc. HDWM-30-54-L-D-250-SM	60	Solder	2	10 µin	0.25 in	0.1 in	0.285 in	0.05 in	Black	Gold	Surface Mount	0.535 in
