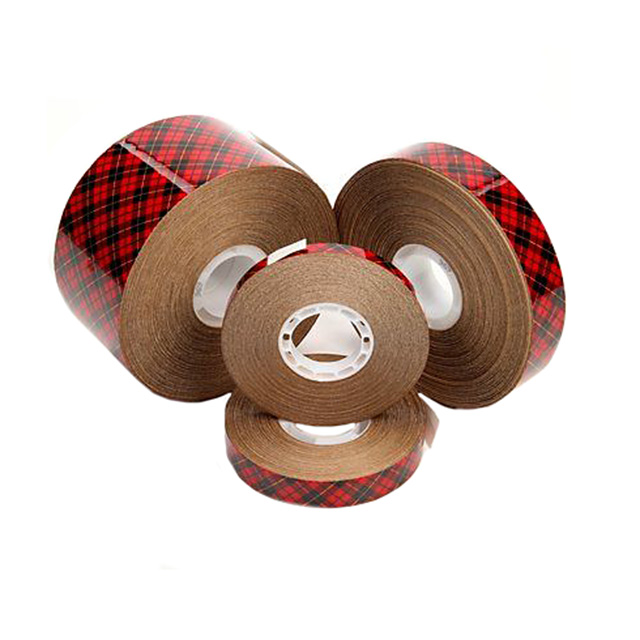

969-1/2"X36YD

Active

3M (TC)

TAPE ADHSV TRNSFR CLR 1/2"X36YDS

Search across all available documentation for this part.

Active

3M (TC)

TAPE ADHSV TRNSFR CLR 1/2"X36YDS

Technical Specifications

Parameters and characteristics for this part

Specification	969-1/2"X36YD

Adhesive	Acrylic, 300
Backing, Carrier	Densified Kraft
Color	Clear
Length	36 yd
Length	32.9 m
Length	108 ft
Shelf Life	24 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature	70 °F
Storage/Refrigeration Temperature	21 °C
Tape Type	Adhesive Transfer
Temperature Range	82 °C
Temperature Range	180 °F
Thickness	0.127 mm
Thickness	5 mils
Thickness	0.005 in
Usage	General Purpose, Splicing, Adhesion
Width	0.5 in
Width	12.7 mm
Width	0.5 in

Part	Shelf Life Start	Width	Width	Width	Color	Adhesive	Tape Type	Length	Length	Length	Backing, Carrier	Usage	Storage/Refrigeration Temperature	Storage/Refrigeration Temperature	Shelf Life	Temperature Range	Temperature Range	Thickness	Thickness	Thickness
3M (TC) 969-1/4"X36YD	Date of Manufacture	0.25 in	0.25 in	6.35 mm	Clear	Acrylic 300	Adhesive Transfer	36 yd	32.9 m	108 ft	Densified Kraft	Adhesion General Purpose Splicing	70 °F	21 °C	24 Months	82 °C	180 °F	0.127 mm	5 mils	0.005 in
3M (TC) 969-1/2"X36YD	Date of Manufacture	0.5 in	0.5 in	12.7 mm	Clear	Acrylic 300	Adhesive Transfer	36 yd	32.9 m	108 ft	Densified Kraft	Adhesion General Purpose Splicing	70 °F	21 °C	24 Months	82 °C	180 °F	0.127 mm	5 mils	0.005 in
3M (TC) 969-3/4"X18YD	Date of Manufacture	19.05 mm	0.75 in	0.75 in	Clear	Acrylic 300	Adhesive Transfer	18 yd	16.5 m	54 ft	Densified Kraft	Adhesion General Purpose Splicing	70 °F	21 °C	24 Months	82 °C	180 °F	0.127 mm	5 mils	0.005 in
3M (TC) 969-3/4"X36YD	Date of Manufacture	19.05 mm	0.75 in	0.75 in	Clear	Acrylic 300	Adhesive Transfer	36 yd	32.9 m	108 ft	Densified Kraft	Adhesion General Purpose Splicing	70 °F	21 °C	24 Months	82 °C	180 °F	0.127 mm	5 mils	0.005 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	72	$ 23.54

General part information

Adhesive Transfer Tape Acrylic, 300 Adhesive Clear 0.50" (12.70mm) 1/2" X 108' (32.9m) 36 yds
