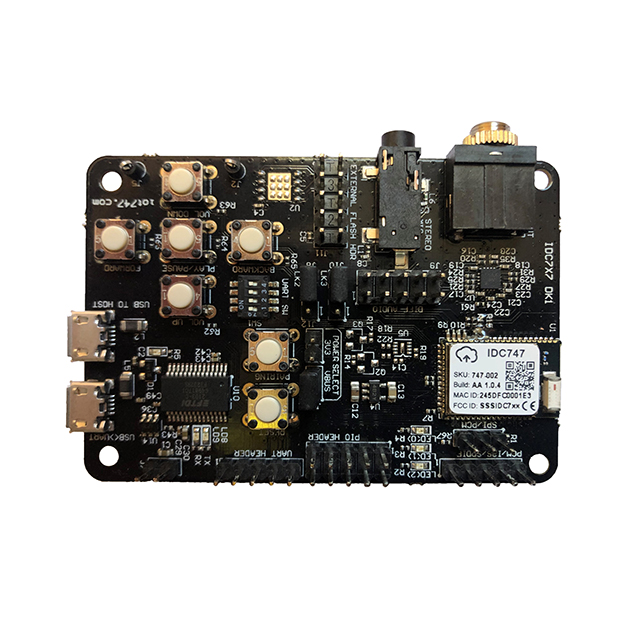

IDC747-1-DK

Active

IOT747

IDC747 DEVELOPMENT KIT

Search across all available documentation for this part.

Active

IOT747

IDC747 DEVELOPMENT KIT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 252.50

General part information

IDC747-1 - Transceiver; Bluetooth® 5.x (BLE) 2.4GHz Evaluation Board

Technical documentation and resources

Specification	IDC747-1-DK	IDC747 Series

Antenna Type	-	Integrated, Chip
Data Rate	-	3 Mbps
For Use With/Related Products	IDC747-1	IDC747-1
Frequency	2.4 GHz	2.4 GHz
Modulation	-	DQPSK, GFSK, DPSK
Mounting Type	-	Surface Mount
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Package / Case	-	51-SMD Module
Power - Output	-	13 dBm
Protocol	-	Bluetooth v5.2
RF Family/Standard	-	Bluetooth
Serial Interfaces	-	I2C, AIO, I2S, USB, UART, GPIO, PCM
Supplied Contents	Board(s)	Board(s)
Type	Transceiver, Bluetooth® 5.x (BLE)	Transceiver, Bluetooth® 5.x (BLE)
Voltage - Supply	-	4.7 V
Voltage - Supply	-	3.3 V

Part	Supplied Contents	For Use With/Related Products	Type	Frequency	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Data Rate	Antenna Type	Power - Output	Voltage - Supply [Max]	Voltage - Supply [Min]	Protocol	RF Family/Standard	Mounting Type	Modulation	Serial Interfaces
IOT747 IDC747-1-DK	Board(s)	IDC747-1	Bluetooth® 5.x (BLE), Transceiver	2.4 GHz
IOT747 IDC747-1				2.4 GHz	51-SMD Module	85 °C	-40 °C	3 Mbps	Integrated, Chip	13 dBm	4.7 V	3.3 V	Bluetooth v5.2	Bluetooth	Surface Mount	DPSK, DQPSK, GFSK	AIO, GPIO, I2C, I2S, PCM, UART, USB
