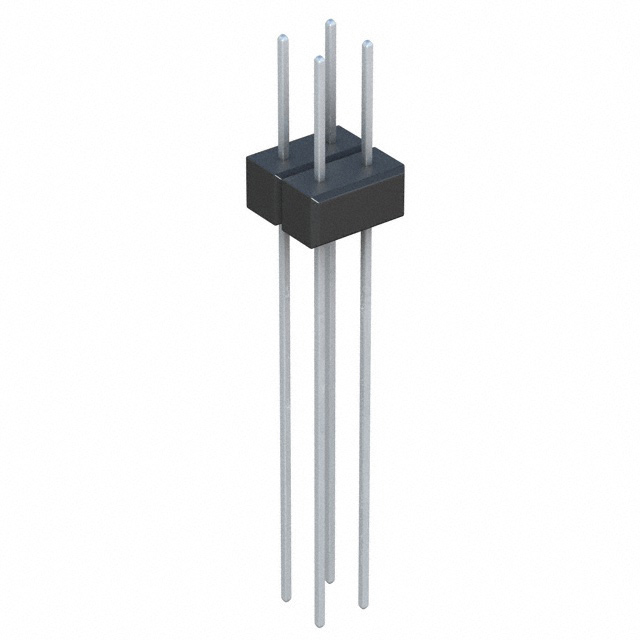

PEC02DAHN

Active

Sullins Connector Solutions

CONN HEADER VERT 4POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

PEC02DAHN

Active

Sullins Connector Solutions

CONN HEADER VERT 4POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PEC02DAHN

Connector Type	Breakaway, Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post [x]	20.83 mm
Contact Length - Post [x]	0.82 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Overall Contact Length	1.15 in
Overall Contact Length	29.21 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PEC02 Series

Part	Contact Finish - Post	Number of Positions Loaded	Contact Length - Mating [x]	Contact Length - Mating	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Operating Temperature [Max]	Operating Temperature [Min]	Contact Shape	Overall Contact Length	Overall Contact Length	Mounting Type	Contact Material	Shrouding	Contact Length - Post	Contact Length - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Fastening Type	Insulation Height	Insulation Height	Number of Positions	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Type	Pitch - Mating	Pitch - Mating	Number of Rows	Style	Insulation Color	Termination	Current Rating (Amps)	Connector Type	Contact Length - Mating [x]	Contact Length - Post [x]	Contact Length - Post [x]
Sullins Connector Solutions PEC02DAEN	Tin	All	0.23 in	5.84 mm	UL94 V-0	2.54 çm	100 çin	Polybutylene Terephthalate (PBT)	125 °C	-65 ░C	Square	0.85 in	21.59 mm	Through Hole	Phosphor Bronze	Unshrouded	13.21 mm	0.52 "	2.54 mm	0.1 in	Push-Pull	0.1 in	2.54 mm	4	2.54 µm	100 µin	Male Pin	0.1 in	2.54 mm	2	Board to Board Cable	Black	Solder	3 A	Breakaway Header
Sullins Connector Solutions PEC02DFBN	Tin	All	0.318 "		UL94 V-0	2.54 çm	100 çin	Polybutylene Terephthalate (PBT)	125 °C	-65 ░C	Square	0.638 in	16.21 mm	Through Hole	Phosphor Bronze	Unshrouded	5.58 mm	0.22 in	2.54 mm	0.1 in	Push-Pull	0.1 in	2.54 mm	4	2.54 µm	100 µin	Male Pin	0.1 in	2.54 mm	2	Board to Board Cable	Black	Solder	3 A	Breakaway Header	8.08 mm
Sullins Connector Solutions PEC02SFBN	Tin	All	0.318 "		UL94 V-0	2.54 çm	100 çin	Polybutylene Terephthalate (PBT)	125 °C	-65 ░C	Square	0.638 in	16.21 mm	Through Hole	Phosphor Bronze	Unshrouded	5.58 mm	0.22 in			Push-Pull	0.1 in	2.54 mm	2	2.54 µm	100 µin	Male Pin	0.1 in	2.54 mm	1	Board to Board Cable	Black	Solder	3 A	Breakaway Header	8.08 mm
Sullins Connector Solutions PEC02DBEN	Tin	All	0.23 in	5.84 mm	UL94 V-0	2.54 çm	100 çin	Polybutylene Terephthalate (PBT)	125 °C	-65 ░C	Square			Through Hole Right Angle	Phosphor Bronze	Unshrouded	12.7 mm	0.5 in	2.54 mm	0.1 in	Push-Pull	0.24 in	6.1 mm	4	2.54 µm	100 µin	Male Pin	0.1 in	2.54 mm	2	Board to Board Cable	Black	Solder	3 A	Breakaway Header
Sullins Connector Solutions PEC02DBAN	Tin	All	0.23 in	5.84 mm	UL94 V-0	2.54 çm	100 çin	Polybutylene Terephthalate (PBT)	125 °C	-65 ░C	Square			Through Hole Right Angle	Phosphor Bronze	Unshrouded	2.54 mm	0.1 in	2.54 mm	0.1 in	Push-Pull	0.24 in	6.1 mm	4	2.54 µm	100 µin	Male Pin	0.1 in	2.54 mm	2	Board to Board Cable	Black	Solder	3 A	Breakaway Header
Sullins Connector Solutions PEC02DAHN	Tin	All	0.23 in	5.84 mm	UL94 V-0	2.54 çm	100 çin	Polybutylene Terephthalate (PBT)	125 °C	-65 ░C	Square	1.15 in	29.21 mm	Through Hole	Phosphor Bronze	Unshrouded			2.54 mm	0.1 in	Push-Pull	0.1 in	2.54 mm	4	2.54 µm	100 µin	Male Pin	0.1 in	2.54 mm	2	Board to Board Cable	Black	Solder	3 A	Breakaway Header		20.83 mm	0.82 in
Sullins Connector Solutions PEC02SFDN	Tin	All	0.318 "		UL94 V-0	2.54 çm	100 çin	Polybutylene Terephthalate (PBT)	125 °C	-65 ░C	Square	0.838 in	21.29 mm	Through Hole	Phosphor Bronze	Unshrouded					Push-Pull	0.1 in	2.54 mm	2	2.54 µm	100 µin	Male Pin	0.1 in	2.54 mm	1	Board to Board Cable	Black	Solder	3 A	Breakaway Header	8.08 mm	10.67 mm	0.42 in
Sullins Connector Solutions PEC02DABN	Tin	All	0.23 in	5.84 mm	UL94 V-0	2.54 çm	100 çin	Polybutylene Terephthalate (PBT)	125 °C	-65 ░C	Square	0.56 in	14.22 mm	Through Hole	Phosphor Bronze	Unshrouded	5.84 mm	0.23 in	2.54 mm	0.1 in	Push-Pull	0.1 in	2.54 mm	4	2.54 µm	100 µin	Male Pin	0.1 in	2.54 mm	2	Board to Board Cable	Black	Solder	3 A	Breakaway Header
Sullins Connector Solutions PEC02SGBN	Tin	All	0.318 "		UL94 V-0	2.54 çm	100 çin	Polybutylene Terephthalate (PBT)	125 °C	-65 ░C	Square			Through Hole Right Angle	Phosphor Bronze	Unshrouded					Push-Pull	0.14 in	3.56 mm	2	2.54 µm	100 µin	Male Pin	0.1 in	2.54 mm	1	Board to Board Cable	Black	Solder	3 A	Breakaway Header	8.08 mm	5.08 mm	0.2 in
Sullins Connector Solutions PEC02SAHN	Tin	All	0.23 in	5.84 mm	UL94 V-0	2.54 çm	100 çin	Polybutylene Terephthalate (PBT)	125 °C	-65 ░C	Square	1.15 in	29.21 mm	Through Hole	Phosphor Bronze	Unshrouded					Push-Pull	0.1 in	2.54 mm	2	2.54 µm	100 µin	Male Pin	0.1 in	2.54 mm	1	Board to Board Cable	Black	Solder	3 A	Breakaway Header		20.83 mm	0.82 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.97
		10	$ 0.74
		100	$ 0.57
		500	$ 0.48
		1000	$ 0.44
		5000	$ 0.39

Description

General part information

PEC02 Series

Connector Header Through Hole 4 position 0.100" (2.54mm)
