1846713
ActivePhoenix Contact
CONNECTOR: PLUGGABLE TERMINAL BLOCK; SOCKET; MALE; 10A; 250V; THT
1846713
ActivePhoenix Contact
CONNECTOR: PLUGGABLE TERMINAL BLOCK; SOCKET; MALE; 10A; 250V; THT
Description
General part information
1846713

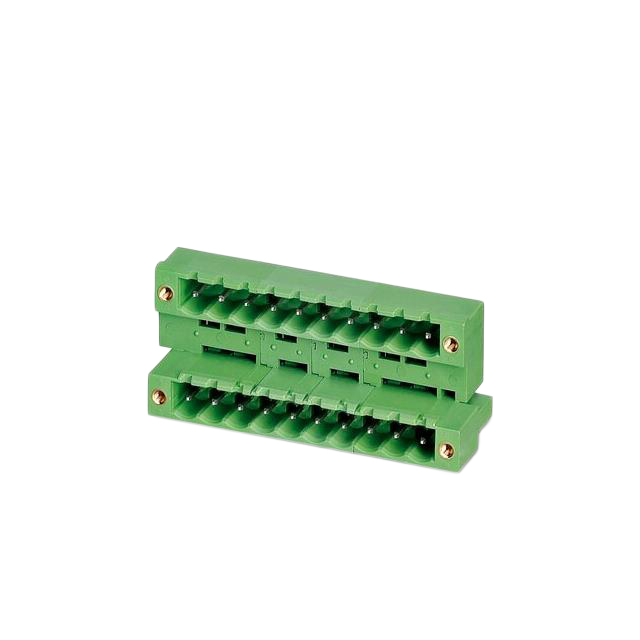

8 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.197" (5.00mm) 90°, Right Angle Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 1846713 |
|---|---|
| Color | Green |
| Contact Mating Finish | Tin |
| Current - IEC | 10 A |
| Current - UL | 15 A |
| Features | Mating Flange |
| Header Orientation | Right Angle |
| Header Orientation Angle | 90 ° |
| Mounting Type | Through Hole |
| Number of Levels | 2 |
| Number of Positions | 8 |
| Pitch | 0.197 in |
| Positions Per Level | 4 |
| Termination Style | Solder |
| Type | Shrouded (4 Side), Male Pins, Header |
| Voltage - IEC | 400 V |
| Voltage - UL | 300 V |
