IMC0805ERR27J01
ActiveVishay Dale
FIXED IND 270NH 350MA 1.46OHM SM
Description
General part information
IMC0805ERR27J01

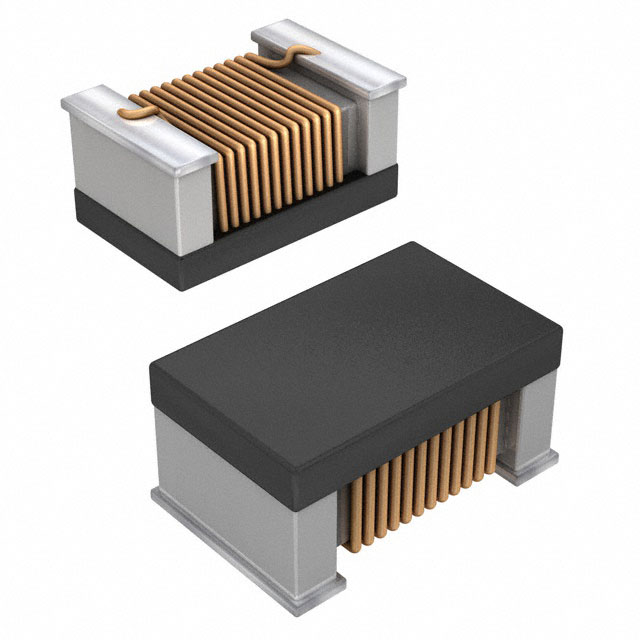

270 nH Unshielded Drum Core, Wirewound Inductor 350 mA 1.46Ohm Max 0805 (2012 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | IMC0805ERR27J01 |
|---|---|
| Current Rating | 350 mA |
| DC Resistance (DCR) (Max) | 1.46 Ohm |
| Frequency - Self Resonant | 850 MHz |
| Height - Seated (Max) | 0.055 in |
| Inductance | 270 nH |
| Inductance Frequency - Test | 100 MHz |
| Material - Core | Ceramic |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 0805 (2012 Metric) |
| Package Length | 2 mm |
| Package Name | 0805, 0805 (2012 Metric) |
| Package Width | 1.2 mm |
| Q | 45 |
| Shielding | Unshielded |
| Size / Dimension Length | 0.079 in |
| Size / Dimension Width | 0.049 in |
| Tolerance | 5 % |
| Type | Drum Core, Wirewound |
