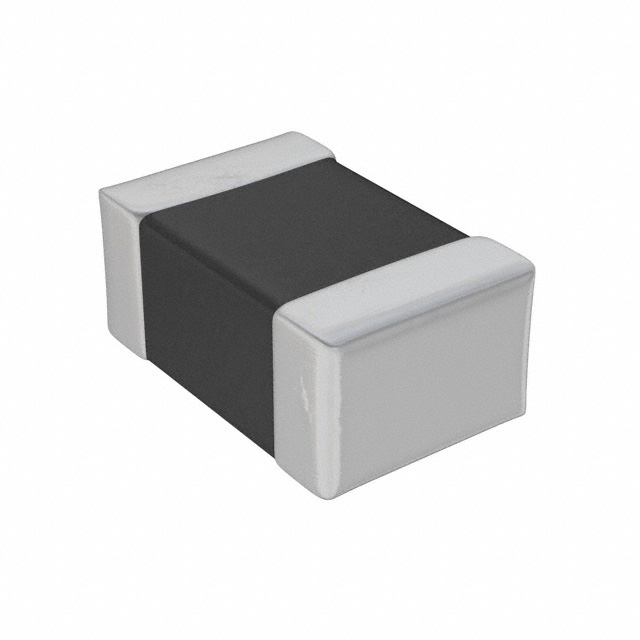

MLZ2012A3R3WTD25
ActiveTDK Corporation
INDUCTOR POWER SHIELDED MULTI-LAYER 3.3UH 20% 10MHZ FERRITE 0.45A 0.442OHM DCR 0805 AUTOMOTIVE AEC-Q200 T/R
MLZ2012A3R3WTD25
ActiveTDK Corporation
INDUCTOR POWER SHIELDED MULTI-LAYER 3.3UH 20% 10MHZ FERRITE 0.45A 0.442OHM DCR 0805 AUTOMOTIVE AEC-Q200 T/R
Description
General part information
MLZ2012A3R3WTD25
3.3 µH Shielded Multilayer Inductor 450 mA 340mOhm 0805 (2012 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | MLZ2012A3R3WTD25 |
|---|---|
| Current - Saturation (Isat) | 200 mA |
| Current Rating | 0.45 A |
| DC Resistance (DCR) | 340 mOhm |
| Height - Seated (Max) | 0.041 in |
| Inductance | 3.3 µH |
| Inductance Frequency - Test | 10 MHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0805 (2012 Metric) |
| Package Length | 2 mm |
| Package Name | 0805, 0805 (2012 Metric) |
| Package Width | 1.2 mm |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Size / Dimension Length | 0.079 in |
| Size / Dimension Width | 0.049 in |
| Tolerance | 20 % |
| Type | Multilayer |
