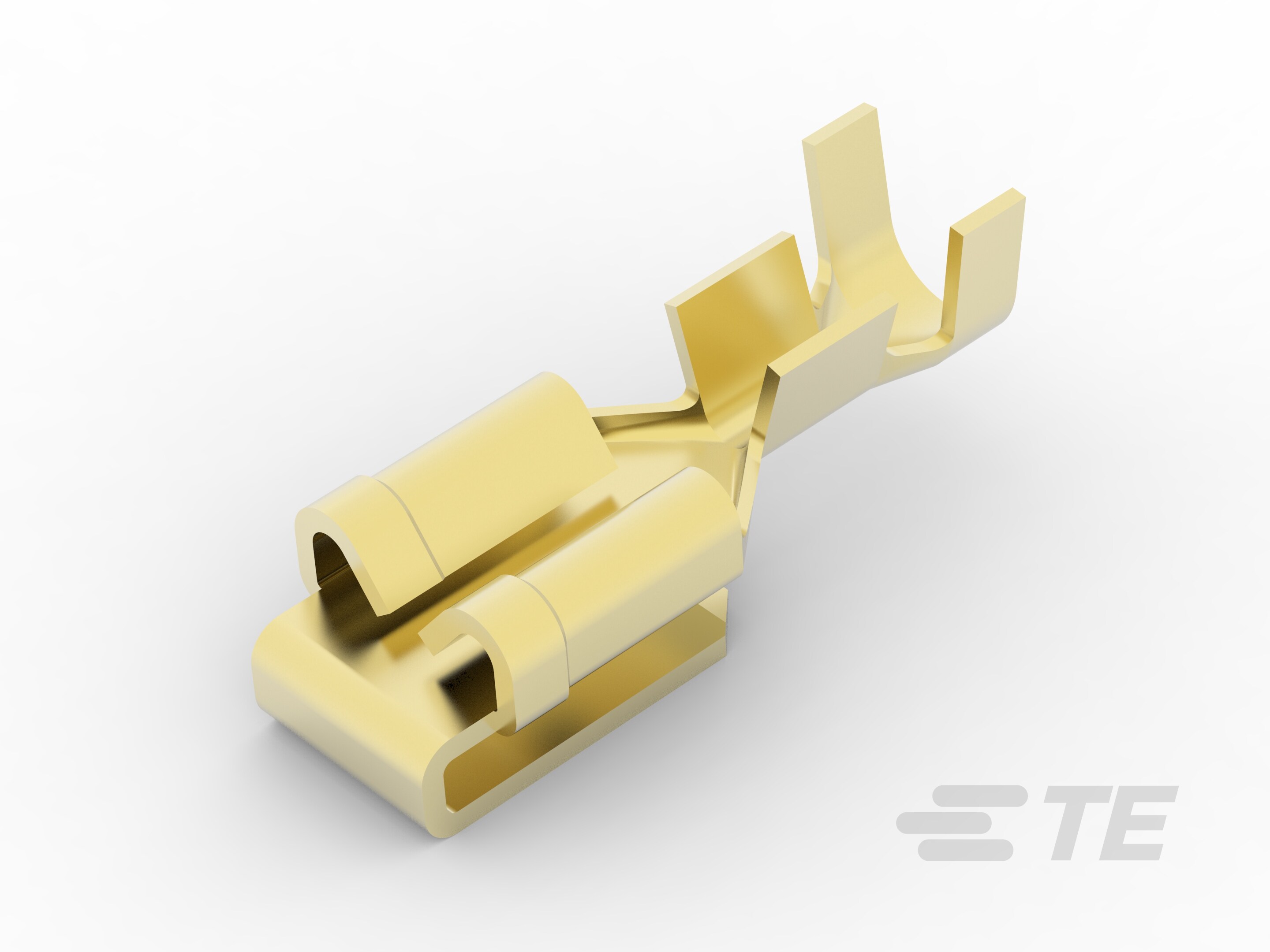

Specification	62026-2

Contact Material	Brass
Gender	Female, Male
Insulation	Non-Insulated
Insulation Diameter (Max)	0.13 in
Insulation Diameter (Min)	0.09 in
Length - Overall	0.635 in
Mounting Type	Free Hanging (In-Line)
Tab Length	0.225 in
Tab Thickness	0.02 in
Tab Width	0.187 in
Terminal Type	Stacked
Termination	Crimp
Wire Gauge (AWG) (Max)	20.5 AWG
Wire Gauge (AWG) (Min)	16 AWG

FASTON 187 Series

...

Part	Tab Length	Insulation	Tab Thickness	Length - Overall	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Tab Width	Terminal Type	Contact Material	Termination	Gender	Mounting Type	Contact Finish	Color	Insulation Diameter	Insulation Diameter (Min)	Insulation Diameter (Max)	Features	Convert To (Adapter End) Type	Convert To (Adapter End) Gender	Convert To (Adapter End) Size	Convert From (Adapter End) Connector Type	Convert From (Adapter End) Pin Gender	Convert From (Adapter End) Type	Convert From (Adapter End) Size	Convert From (Adapter End) Pin Count	Terminal Angle	Note	Material	Related Product Length	For Use With/Related Products	Related Product Thickness	Terminal Size	Style	Number of Positions
TE Connectivity AMP Connectors 42799-1	0.25 in	Non-Insulated	0.02 in	0.475 in	20.5 AWG	16 AWG	0.187 in	Standard	Brass	Crimp	Female	Free Hanging (In-Line)
TE Connectivity AMP Connectors 641321-2	0.25 in	Non-Mating End Insulated	0.02 in	0.7 in	26 AWG	24 AWG	0.187 in	Standard	Brass	Crimp	Female	Free Hanging (In-Line)	Tin	Yellow	0.082 in
TE Connectivity AMP Connectors 63603-1		Non-Insulated	0.02 in	0.487 in			0.187 in	Standard	Brass	Solder	Male	Through Hole	Tin
TE Connectivity AMP Connectors 881623-8	0.252 in	Non-Insulated	0.02 in	0.594 in	20.5 AWG	17 AWG	0.187 in	Standard	Brass	Crimp	Female	Free Hanging (In-Line)
TE Connectivity AMP Connectors 1217084-1	0.225 in	Non-Insulated	0.02 in	0.615 in	22 AWG	18 AWG	0.187 in	Stacked	Brass	Crimp	Female Male	Free Hanging (In-Line)	Tin			0.09 in	0.13 in
TE Connectivity AMP Connectors 61045-2		Non-Insulated							Brass				Tin					Side by Side Male Terminals	Quick Connect	Female	0.187 in	(4.75mm) Quick Connect Male (2)	Male	Quick Connect	0.187 "	2 pins
TE Connectivity AMP Connectors 1742086-2	0.145 in	Non-Insulated	0.02 in	0.444 in	22 AWG	18 AWG	0.187 in	Angled Flag	Brass	Crimp	Female	Free Hanging (In-Line) Right Angle	Tin														90 °
TE Connectivity AMP Connectors 696108-1	0.25 in	Non-Mating End Insulated	0.032 in	0.9 in	16 AWG	14 AWG	0.187 in	Standard	Brass	Crimp	Female	Free Hanging (In-Line)	Tin	Blue	0.25 in
TE Connectivity AMP Connectors 60196-2	0.25 in	Non-Insulated	0.032 in	0.59 in	20.5 AWG	16 AWG	0.187 in	Standard	Brass	Crimp	Female	Free Hanging (In-Line)	Tin
TE Connectivity AMP Connectors 2-480435-2								Disconnect Quick Connect			Female Receptacle	Free Hanging (In-Line)		Natural														Contacts Not Included	Nylon 6 Polyamide (PA6)	0.187 in	0.187" (4.75mm) Quick Connects Quick Connects	0.187 in	0.187 in	Housing	1
