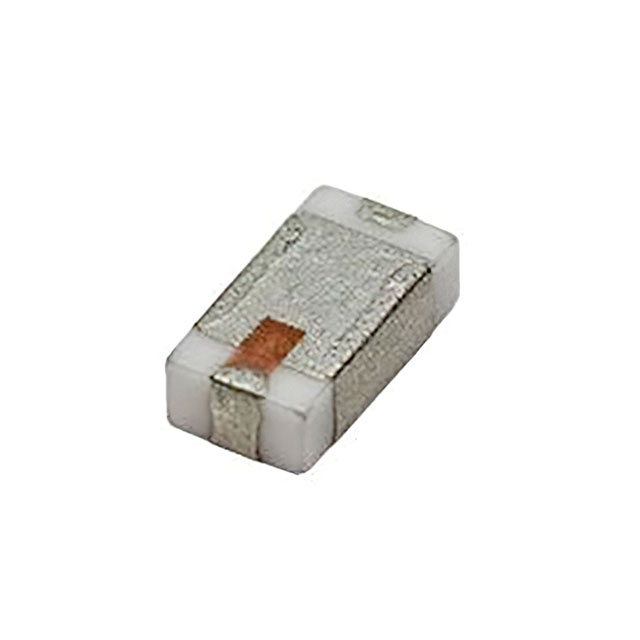

BFCN-1052+
ActiveMini-Circuits
LTCC BAND PASS FILTER, 9700 - 11
BFCN-1052+
ActiveMini-Circuits
LTCC BAND PASS FILTER, 9700 - 11
Description
General part information
BFCN-1052+
10.77GHz Center Band Pass Ceramic Filter 2.25 GHz 50Ohm 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | BFCN-1052+ |
|---|---|
| Bandwidth | 2.25 GHz |
| Filter Type | Band Pass |
| Frequency (Center) | 10.77 GHz |
| Height (Max) | 0.041 in |
| Impedance | 50 Ohm |
| Insertion Loss | 3 dB |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension Length | 0.126 in |
| Size / Dimension Width | 0.063 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
