Specification	CMU1003-0000-000N0H0A30H

CCT (K)	3000 K
CCT Description	2-Step MacAdam Ellipse
Color	White, Warm
CRI (Color Rendering Index)	80
Current - Max	240 mA
Current - Test	90 mA
Flux (Typical)	495 lm
Height - Seated (Max)	0.067 in
Lumens/Watt	163 lm/W
Mounting Type	Surface Mount
Package / Case	No Lead, 2-SMD
Size / Dimension Length	0.531 in
Size / Dimension Width	0.531 in
Viewing Angle	115 °
Voltage - Forward (Vf) (Typ)	33.7 V

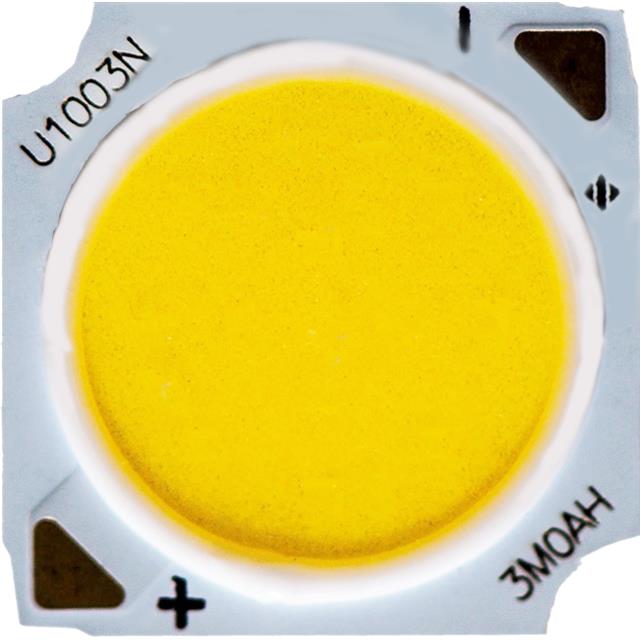

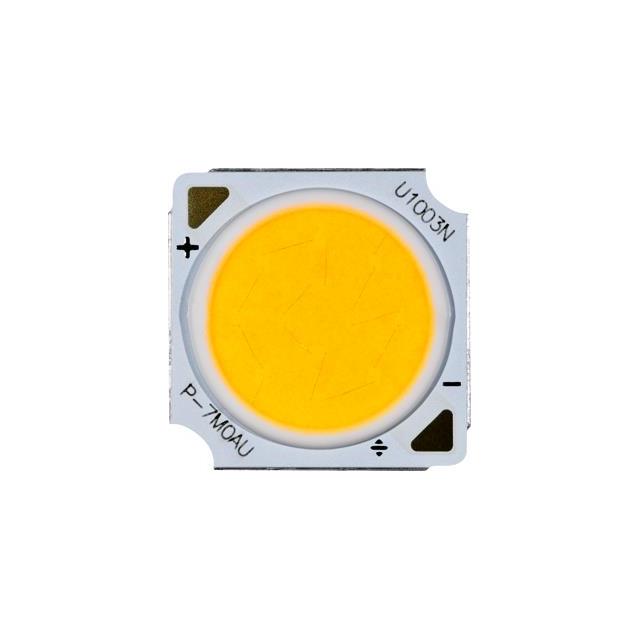

CMU1003 Series

...

Part	CRI (Color Rendering Index)	Light Emitting Surface (LES) Diameter	Color	Configuration	Voltage - Forward (Vf) (Typ)	Current - Test	Viewing Angle	Type	CCT (K)	Lens Type	Size / Dimension Width	Size / Dimension Length	Height	Current - Max	Temperature - Test	Lumens/Watt	CCT Description	Luminous Flux (Typical)
CreeLED, Inc. CMU1003-R160-00PN0Z0A35H	95	9.8 mm	Warm White	Square	33.7 V	90 mA	115 °	Chip On Board (COB)	3500 K	Flat	13.5 mm	13.5 mm	1.5 mm	240 mA	85 °C
CreeLED, Inc. CMU1003-R160-00PN0U0A30Q	90	9.8 mm	Warm White	Square	33.7 V	90 mA	115 °	Chip On Board (COB)	3000 K	Flat	13.5 mm	13.5 mm	1.5 mm	240 mA	85 °C
CreeLED, Inc. CMU1003-R160-000N0H0A50G	80	9.8 mm	Cool White	Square	33.7 V	90 mA	115 °	Chip On Board (COB)	5000 K	Flat	13.5 mm	13.5 mm	1.5 mm	240 mA	85 °C	170 lm/W	3-Step MacAdam Ellipse	515 lm
CreeLED, Inc. CMU1003-R160-000N0H0A30G	80	9.8 mm	Warm White	Square	33.7 V	90 mA	115 °	Chip On Board (COB)	3000 K	Flat	13.5 mm	13.5 mm	1.5 mm	240 mA	85 °C	163 lm/W	3-Step MacAdam Ellipse	495 lm
CreeLED, Inc. CMU1003-R160-000N0B0A57E	70	9.8 mm	Cool White	Square	33.7 V	90 mA	115 °	Chip On Board (COB)	5700 K	Flat	13.5 mm	13.5 mm	1.5 mm	240 mA	85 °C	187 lm/W	5-Step MacAdam Ellipse	568 lm

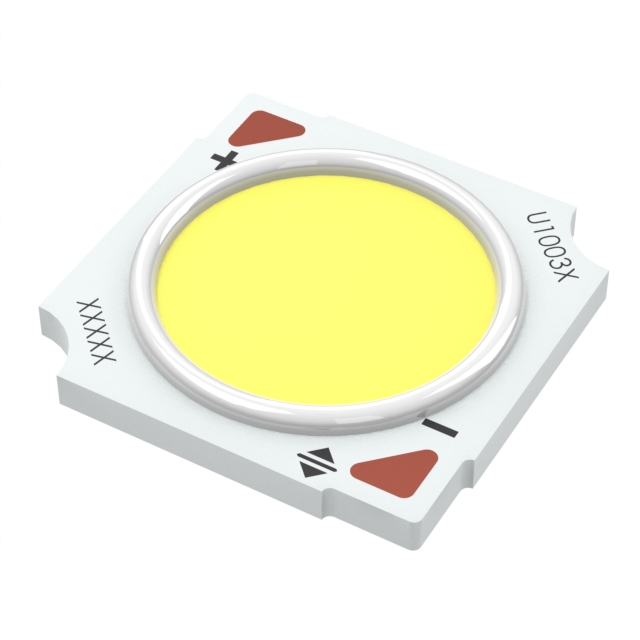

CreeLED, Inc. CMU1003-0000-000N0Z0A27H	95	9.8 mm	Warm White	Square	33.7 V	90 mA	115 °	Chip On Board (COB)	2700 K	Flat	13.5 mm	13.5 mm	1.5 mm	240 mA	85 °C	120 lm/W	2-Step MacAdam Ellipse	363 lm
CreeLED, Inc. CMU1003-R160-00PN0U0A31Q	90	9.8 mm	Warm White	Square	33.7 V	90 mA	115 °	Chip On Board (COB)	3100 K	Flat	13.5 mm	13.5 mm	1.5 mm	240 mA	85 °C
CreeLED, Inc. CMU1003-R160-000N0U0A30Q	90	9.8 mm	Warm White	Square	33.7 V	90 mA	115 °	Chip On Board (COB)	3000 K	Flat	13.5 mm	13.5 mm	1.5 mm	240 mA	85 °C	138 lm/W	3-Step MacAdam Ellipse	420 lm
CreeLED, Inc. CMU1003-R160-000N0B0A30E	70	9.8 mm	Warm White	Square	33.7 V	90 mA	115 °	Chip On Board (COB)	3000 K	Flat	13.5 mm	13.5 mm	1.5 mm	240 mA	85 °C	179 lm/W	5-Step MacAdam Ellipse	543 lm
CreeLED, Inc. CMU1003-R160-000N0H0A30H	80	9.8 mm	Warm White	Square	33.7 V	90 mA	115 °	Chip On Board (COB)	3000 K	Flat	13.5 mm	13.5 mm	1.5 mm	240 mA	85 °C	163 lm/W	2-Step MacAdam Ellipse	495 lm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet
