01732.70.01
ActivePrysmian Group
CORD 18AWG NEMA 5-15P TO CBL 8'
01732.70.01
ActivePrysmian Group
CORD 18AWG NEMA 5-15P TO CBL 8'
Description
General part information
01732.70.01

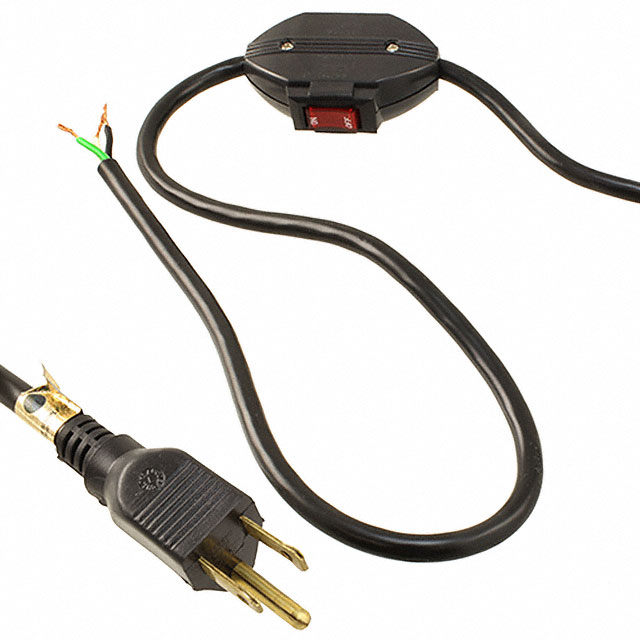

8.00' (2.44m) Power Cord Black NEMA 5-15P To Cable SJT
Technical Specifications
Parameters and characteristics for this part
| Specification | 01732.70.01 |
|---|---|
| 1st Connector | NEMA 5-15P |
| 2nd Connector | Cable |
| Approval Agency Marking | CSA, UL |
| Approved Countries | United States, Canada |
| Color | Black |
| Cord Type | SJT |
| Current Rating | 10 A |
| Features | On-Off Switch |
| Length | 96 in |
| Number of Conductors | 3 |
| Operating Temperature | 60 °C |
| Style | Leads, Male Pins (Blades) |
| Voltage Rating | 125 V |
| Wire Gauge | 18 AWG |
