009296001503806

Active

KYOCERA AVX

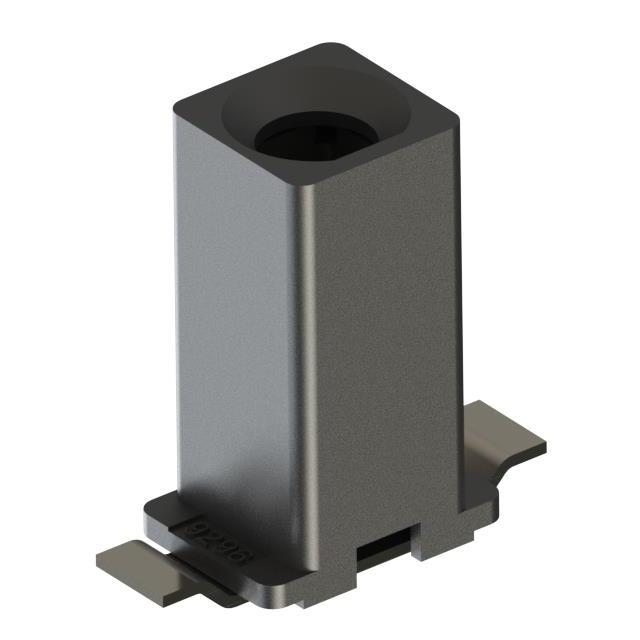

CONN WIR POKE-IN 1P 18-26AWG SMD

Search across all available documentation for this part.

Active

KYOCERA AVX

CONN WIR POKE-IN 1P 18-26AWG SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	009296001503806	009296 Series

Board-Side Pitch	-	3 - 4 mm
Board-Side Pitch	-	0.118 - 0.157 "
Cable Pitch	-	0.118 in
Cable Pitch	-	3 mm
Cable Pitch	-	0.157 in
Cable Pitch	-	4 mm
Cable Termination	Poke-In	Poke-In
Color	-	White, Yellow, Red, Brown, Blue, Black
Connector Type	Individual Wires	Individual Wires
Contact Finish	Tin	Tin
Features	-	Closed End
Mounting Type	Surface Mount, Through Board	Surface Mount, Right Angle, Surface Mount, Through Board
Number of Positions	1	1 - 6
Number of Positions Loaded	All	All
Number of Rows	1	1
Wire Gauge	-	Stranded or Solid
Wire Gauge [Max]	26 AWG	22 - 26 AWG
Wire Gauge [Min]	17.5 AWG	17.5 - 20 AWG

CONN WIRE POKE-IN 5POS SMD RA

Part	Cable Termination	Mounting Type	Features	Number of Positions Loaded	Cable Pitch [x]	Cable Pitch [x]	Contact Finish	Number of Rows	Color	Board-Side Pitch	Board-Side Pitch	Wire Gauge [Min]	Wire Gauge [Max]	Connector Type	Number of Positions	Cable Pitch	Cable Pitch	Wire Gauge
KYOCERA AVX 009296005202906	Poke-In	Surface Mount, Right Angle	Closed End	All	0.118 in	3 mm	Tin	1	White	3 mm	0.118 "	20 AWG	26 AWG	Individual Wires
KYOCERA AVX 009296001402906	Poke-In	Surface Mount		All			Tin	1	White			17.5 AWG	24 AWG	Individual Wires	1
KYOCERA AVX 009296004503906	Poke-In	Surface Mount, Through Board		All			Tin	1	White	4 mm	0.157 in	17.5 AWG	26 AWG	Individual Wires	4	0.157 in	4 mm
KYOCERA AVX 009296006202906	Poke-In	Surface Mount, Right Angle	Closed End	All	0.118 in	3 mm	Tin	1	White	3 mm	0.118 "	20 AWG	26 AWG	Individual Wires	6
KYOCERA AVX 009296001503406	Poke-In	Surface Mount	Closed End	All			Tin	1	Yellow			17.5 AWG	26 AWG	Individual Wires	1			Stranded or Solid
KYOCERA AVX 009296006553906	Poke-In	Surface Mount		All			Tin	1	White	4 mm	0.157 in	17.5 AWG	26 AWG	Individual Wires	6	0.157 in	4 mm
KYOCERA AVX 009296004553906	Poke-In	Surface Mount		All			Tin	1	White	4 mm	0.157 in	17.5 AWG	26 AWG	Individual Wires	4	0.157 in	4 mm
KYOCERA AVX 009296001202506	Poke-In	Surface Mount, Right Angle	Closed End	All			Tin	1	Red			20 AWG	26 AWG	Individual Wires	1
KYOCERA AVX 009296001202906	Poke-In	Surface Mount, Right Angle	Closed End	All			Tin	1	White			20 AWG	26 AWG	Individual Wires	1
KYOCERA AVX 009296005402906	Poke-In	Surface Mount		All			Tin	1	White	4 mm	0.157 in	17.5 AWG	24 AWG	Individual Wires		0.157 in	4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1600	$ 0.36

General part information

1 Position Individual Wires Connector Poke-In 18-26 AWG Surface Mount, Through Board
