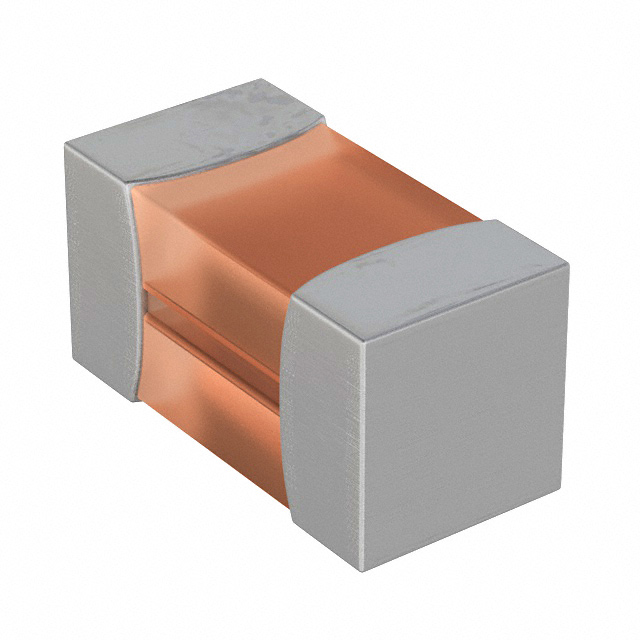

Specification	504L50R0FTNCFT

Composition	Thin Film
Features	RF, High Frequency
Height - Seated (Max)	0.024 in
Number of Terminations	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Package / Case	0402 (1005 Metric)
Package Name	0402
Power (Watts)	0.125 W
Power (Watts) Options	1/8W
Resistance	50 Ohms
Size / Dimension Length	0.039 in
Size / Dimension Width	0.02 in
Temperature Coefficient (Highest)	-50 ppm/°C
Temperature Coefficient (Lowest)	-150 ppm/°C
Tolerance	1 %
