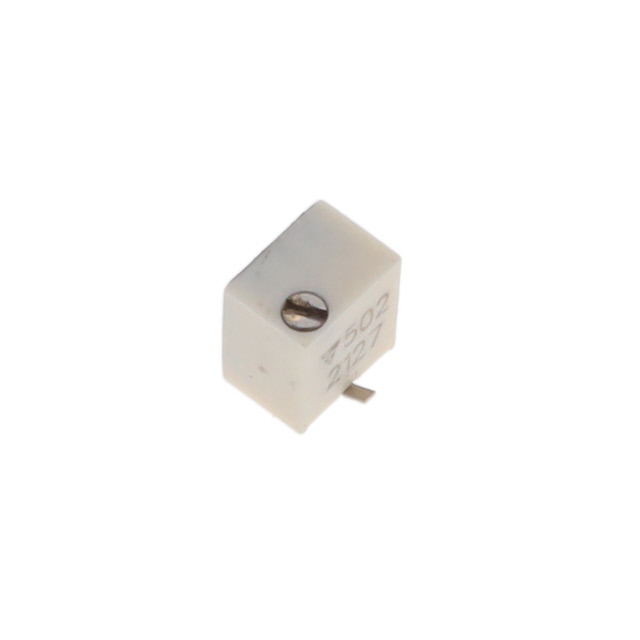

TSM4YL502KR05
ActiveVishay Dale
TRIMMER 5K OHM 0.25W GW TOP ADJ
TSM4YL502KR05
ActiveVishay Dale
TRIMMER 5K OHM 0.25W GW TOP ADJ
Description
General part information
TSM4YL502KR05
5 kOhms 0.25W, 1/4W Gull Wing Surface Mount Trimmer Potentiometer Cermet 13.0 Turn Top Adjustment
Technical Specifications
Parameters and characteristics for this part
| Specification | TSM4YL502KR05 |
|---|---|
| Adjustment Type | Top Adjustment |
| Mounting Type | Surface Mount |
| Number of Turns | 13 turns |
| Power (Watts) | 250 mW |
| Power (Watts) Options | 1/4W |
| Resistance | 5 kOhm |
| Resistive Material | Cermet |
| Size / Dimension Length | 0.189 in |
| Size / Dimension Shape | Rectangular |
| Size / Dimension Width | 0.138 in |
| Temperature Coefficient | 100 ppm/°C |
| Termination Style | Gull Wing |
| Tolerance | 10 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
