28R1779-000
ActiveLaird Technologies EMI
FERRITE CORE 298 OHM SOLID
28R1779-000
ActiveLaird Technologies EMI
FERRITE CORE 298 OHM SOLID
Description
General part information
28R1779-000

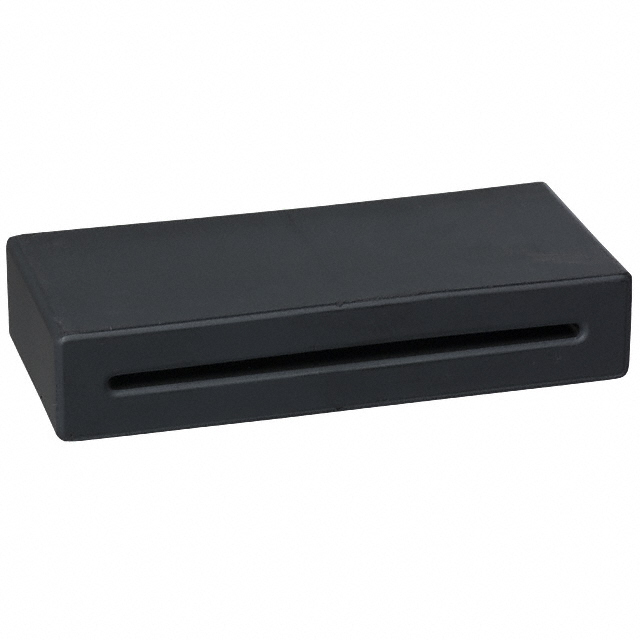

Solid Free Hanging Ferrite Core 298Ohm @ 100MHz ID 2.050" W x 0.066" H (52.07mm x 1.68mm) OD 2.500" W x 0.500" H (63.50mm x 12.70mm) Length 1.125" (28.58mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 28R1779-000 |
|---|---|
| Design | Solid |
| Impedance | 298 Ohm |
| Inner Dimension Height | 0.066 in |
| Inner Dimension Width | 2.05 in |
| Length | 1.125 in |
| Material | 28 |
| Material Temperature Rating | 28 °C |
| Mounting Type | Free Hanging |
| Outer Dimension Height | 0.5 in |
| Outer Dimension Width | 2.5 in |
| Type | Flat |
