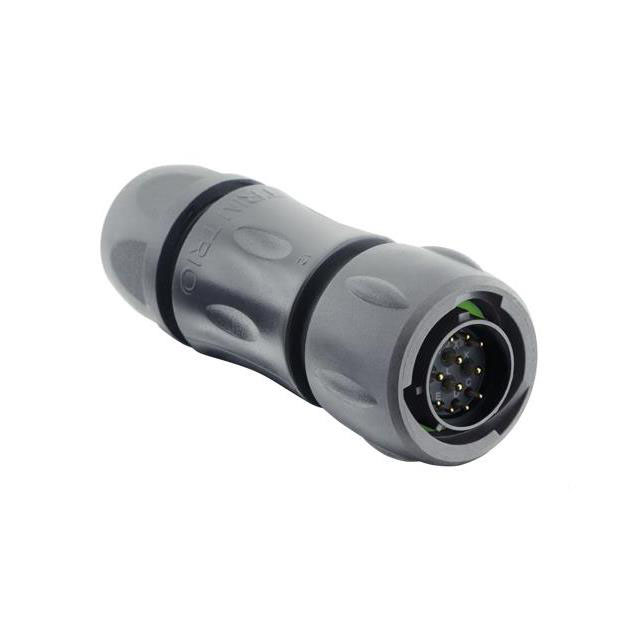

Specification	UTSX6JC14E12PW

Backshell Material, Plating	Nylon, Polyamide (PA)
Color	Black
Connector Type	Male Pins, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Material	Brass
Current Rating Options	5A, 10A
Fastening Type	Bayonet Lock
Features	Backshell, Coupling Nut, UV Resistant
Ingress Protection Description	Water Resistant, Waterproof, Dust Tight
Ingress Protection IP Rating	IP69K, IP68
Insert Material	Neoprene
Material Flammability Rating	UL94 HB
Mounting Type	Free Hanging (In-Line)
Number of Positions	12
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Orientation	W
Primary Material	Plastic
Shell Material	Nylon, Polyamide (PA)
Shell Size - Insert Length	14 mm
Shell Size - Insert Width	12 mm
Shielding	Unshielded
Termination	Solder Cup
Voltage Rating	250 V, 600 V
