DC0402824U2B-2T0
ActiveWakefield Thermal Solutions

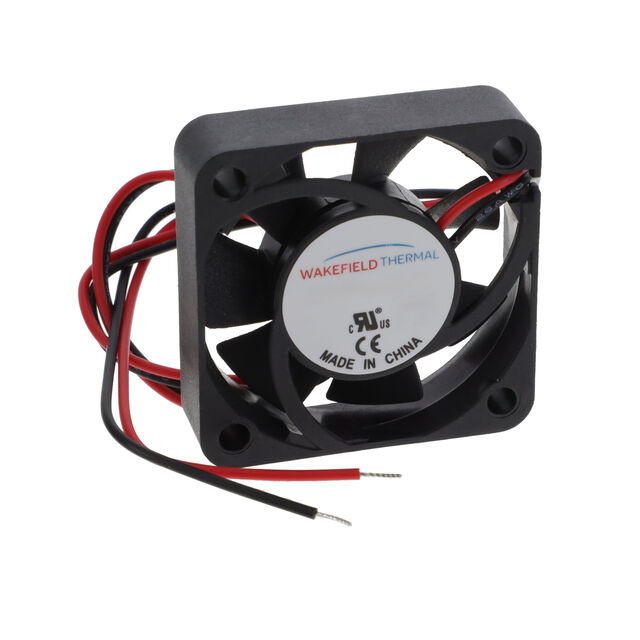

FAN 40X28MM 24VDC
DC0402824U2B-2T0
ActiveWakefield Thermal Solutions
FAN 40X28MM 24VDC
Description
General part information
DC0402824U2B-2T0
Fan Tubeaxial 24VDC Square - 40mm L x 40mm H Ball 24.8 CFM (0.694m³/min) 2 Wire Leads
Technical Specifications
Parameters and characteristics for this part
| Specification | DC0402824U2B-2T0 |
|---|---|
| Air Flow | 24.8 CFM |
| Approval Agency | cURus, CE |
| Bearing Type | Ball |
| Current Rating | 0.64 A |
| Fan Type | Tubeaxial |
| Features | Locked Rotor Protection |
| Lifetime | 70000 Hrs |
| Material - Blade | Polybutylene Terephthalate, PBT, Glass Filled |
| Material - Frame | Glass Filled, Polybutylene Terephthalate (PBT) |
| Noise | 58 dB |
| Operating Temperature (Max) | 158 °F |
| Operating Temperature (Min) | 14 °F |
| Power (Watts) | 15.36 W |
| RPM | 15000 RPM |
| Size / Dimension Height | 40 mm |
| Size / Dimension Length | 40 mm |
| Size / Dimension Shape | Square |
| Static Pressure | 1.64 in H2O |
| Termination | 2 Wire Leads |
| Termination Leads Count | 2 leads |
| Termination Type | Wire Leads |
| Voltage - Rated | 24 VAC |
| Width | 28 mm |
