285CCCRSAAA4C1
ActiveCTS Electrocomponents

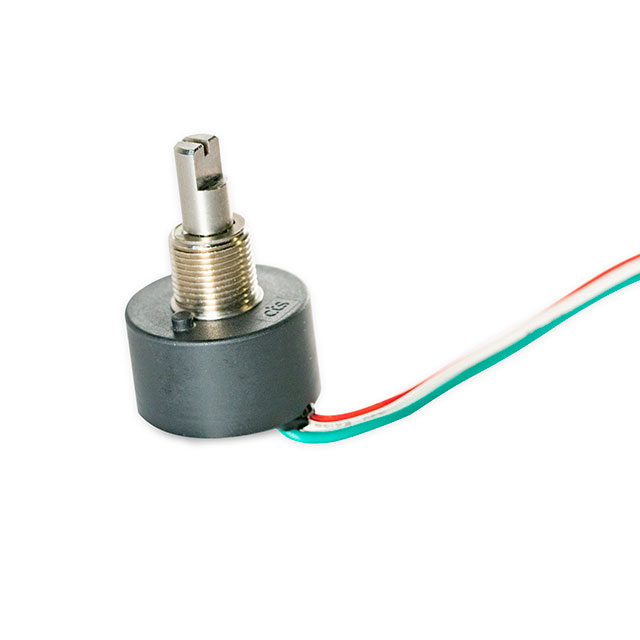

SENSOR ROTARY POS 360 DEG 3.3V
285CCCRSAAA4C1
ActiveCTS Electrocomponents
SENSOR ROTARY POS 360 DEG 3.3V
Description
General part information
285CCCRSAAA4C1
Sensor Rotary Position Round Shaft Wire Leads
Technical Specifications
Parameters and characteristics for this part
| Specification | 285CCCRSAAA4C1 |
|---|---|
| Actuator Type | Round Shaft |
| For Measuring | Rotary Position |
| Linearity Tolerance | 0.5 % |
| Mounting Type | Panel Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Output | Analog Voltage |
| Output Signal | Clockwise Increase |
| Package / Case | Module, Round Shaft |
| Rotation Angle - Electrical, Mechanical (Maximum) | 360 ° |
| Rotation Angle - Electrical, Mechanical (Minimum) | 0 ° |
| Termination Style | Wire Leads |
| Voltage - Supply | 3.3 V |
