796692-7

Active

TE Connectivity AMP Connectors

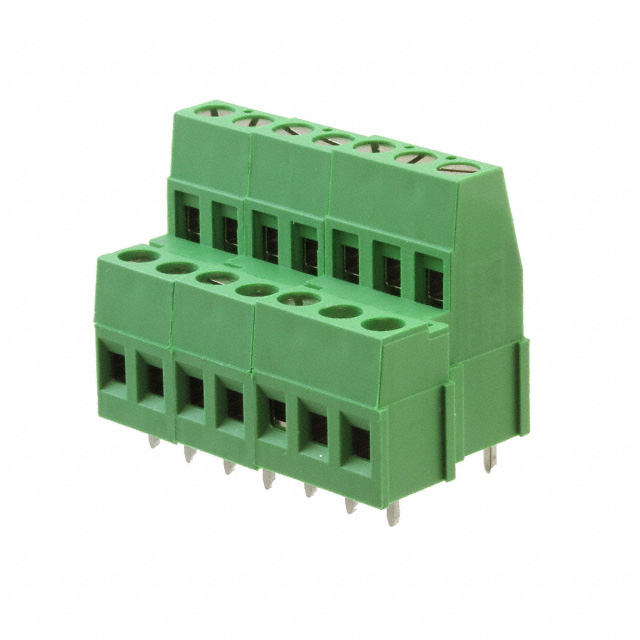

TERM BLK 7P SIDE ENT 5.08MM PCB

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

TERM BLK 7P SIDE ENT 5.08MM PCB

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 Position Wire to Board Terminal Block Horizontal with Board 0.200" (5.08mm) Through Hole

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	796692-7	796692 Series

Clamp Material - Plating	Brass - Tin Plated	Brass - Tin Plated
Color	Green	Green
Contact Material - Plating [custom]	Brass - Tin Plated	Brass - Tin Plated
Current	17.5 A	17.5 A
Features	Interlocking (Side)	Interlocking (Side)
Mating Orientation	Horizontal with Board	Horizontal with Board
Mounting Type	Through Hole	Through Hole
Number of Levels	2	2
Pitch [x]	0.2 in	0.2 in
Pitch [x]	5.08 mm	5.08 mm
Positions Per Level	7	6 - 16
Screw Material - Plating	Brass - Nickel Plated	Brass - Nickel Plated
Screw Thread	M3	M3
Torque - Screw	0.79 Nm	0.79 Nm
Torque - Screw	7 Lb-In	7 Lb-In
Voltage	300 V	300 V
Wire Gauge [Max]	30 AWG	30 AWG
Wire Gauge [Min]	12 AWG	12 AWG
Wire Termination	Screw - Rising Cage Clamp	Screw - Rising Cage Clamp

TERM BLK 6P SIDE ENT 5.08MM PCB

Part	Pitch [x]	Pitch [x]	Wire Termination	Number of Levels	Voltage	Screw Material - Plating	Color	Features	Contact Material - Plating [custom]	Mounting Type	Current	Mating Orientation	Positions Per Level	Torque - Screw	Torque - Screw	Wire Gauge [Max]	Wire Gauge [Min]	Clamp Material - Plating	Screw Thread
TE Connectivity AMP Connectors 796692-6	0.2 in	5.08 mm	Screw - Rising Cage Clamp	2	300 V	Brass - Nickel Plated	Green	Interlocking (Side)	Brass - Tin Plated	Through Hole	17.5 A	Horizontal with Board	6	0.79 Nm	7 Lb-In	30 AWG	12 AWG	Brass - Tin Plated	M3
TE Connectivity AMP Connectors 796692-7	0.2 in	5.08 mm	Screw - Rising Cage Clamp	2	300 V	Brass - Nickel Plated	Green	Interlocking (Side)	Brass - Tin Plated	Through Hole	17.5 A	Horizontal with Board	7	0.79 Nm	7 Lb-In	30 AWG	12 AWG	Brass - Tin Plated	M3
TE Connectivity AMP Connectors 1-796692-6	0.2 in	5.08 mm	Screw - Rising Cage Clamp	2	300 V	Brass - Nickel Plated	Green	Interlocking (Side)	Brass - Tin Plated	Through Hole	17.5 A	Horizontal with Board	16	0.79 Nm	7 Lb-In	30 AWG	12 AWG	Brass - Tin Plated	M3
TE Connectivity AMP Connectors 1-796692-2	0.2 in	5.08 mm	Screw - Rising Cage Clamp	2	300 V	Brass - Nickel Plated	Green	Interlocking (Side)	Brass - Tin Plated	Through Hole	17.5 A	Horizontal with Board	12	0.79 Nm	7 Lb-In	30 AWG	12 AWG	Brass - Tin Plated	M3
TE Connectivity AMP Connectors 796692-8	0.2 in	5.08 mm	Screw - Rising Cage Clamp	2	300 V	Brass - Nickel Plated	Green	Interlocking (Side)	Brass - Tin Plated	Through Hole	17.5 A	Horizontal with Board	8	0.79 Nm	7 Lb-In	30 AWG	12 AWG	Brass - Tin Plated	M3
