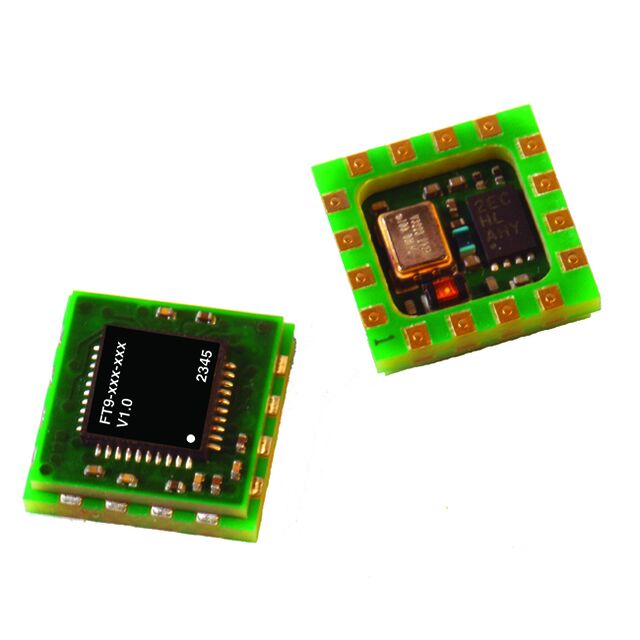

FT9-CC-2DDP
ActiveConnor Winfield
IC CLK FREQ TRANS SELF COMP 16QF
FT9-CC-2DDP
ActiveConnor Winfield
IC CLK FREQ TRANS SELF COMP 16QF
Description
General part information
FT9-CC-2DDP
Clock Frequency Translator IC 156.25MHz 1
Technical Specifications
Parameters and characteristics for this part
| Specification | FT9-CC-2DDP |
|---|---|
| Differential Input | No |
| Differential Output | No |
| Divider | Yes |
| Frequency - Max | 156.25 MHz |
| Input | LVCMOS |
| Input Ratio | 2 |
| Mounting Type | Surface Mount |
| Multiplier | No |
| Number of Circuits | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Output | LVCMOS |
| Output Ratio | 2 |
| Package / Case | 16-BQFN Module |
| Package Length | 9.2 mm |
| Package Name | 16-QFN |
| Package Width | 9.2 mm |
| PLL | Yes |
| Type | Clock Frequency Translator |
| Voltage - Supply (Maximum) | 3.47 V |
| Voltage - Supply (Minimum) | 3.13 V |
