MBB02070C2154FC100
ActiveVishay Dale

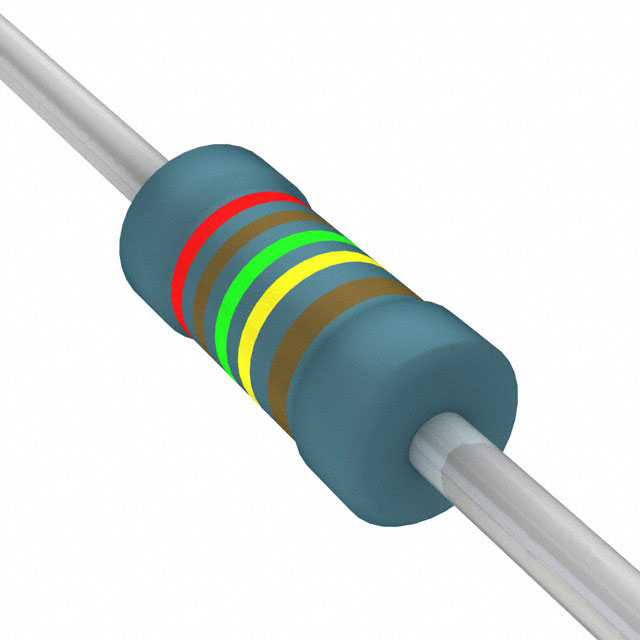

RES 2.15M OHM 0.6W 1% AXIAL
MBB02070C2154FC100
ActiveVishay Dale
RES 2.15M OHM 0.6W 1% AXIAL
Description
General part information
MBB02070C2154FC100
2.15 MOhms ±1% 0.6W Through Hole Resistor Axial Automotive AEC-Q200 Metal Film
Technical Specifications
Parameters and characteristics for this part
| Specification | MBB02070C2154FC100 |
|---|---|
| Composition | Metal Film |
| Features | Automotive AEC-Q200 |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Power (Watts) | 600 mW |
| Resistance | 2.15 MOhms |
| Size / Dimension Diameter | 0.098 in |
| Size / Dimension Length | 0.256 in |
| Temperature Coefficient | 50 ppm/°C |
| Tolerance | 1 % |
