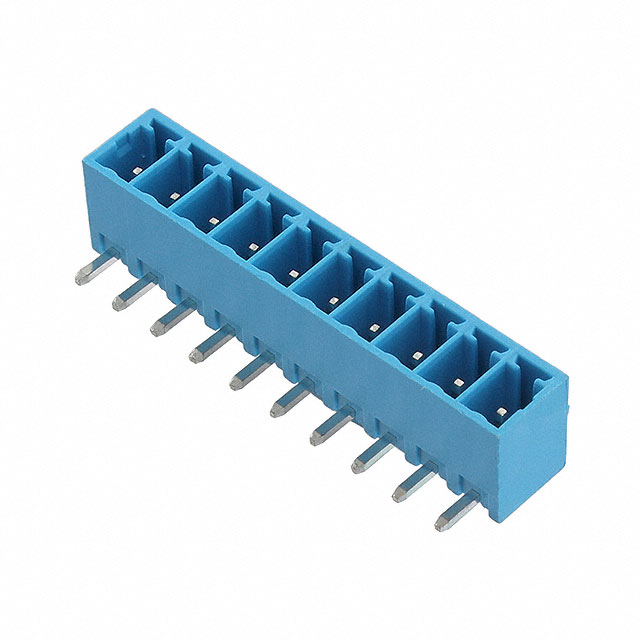

Specification	TBP02R1-381-10BE

Color	Blue
Contact Material	Copper Alloy
Contact Mating Finish	Tin
Contact Tail Length	0.138 in
Current - IEC	7 A
Current - UL	8 A
Header Orientation	Right Angle
Header Orientation Angle	90 °
Housing Material	Nylon 6/6, Polyamide, PA66
Insulation Height	0.284 in
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	1
Number of Positions	10
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.15 in
Positions Per Level	10
Termination Style	Solder
Type	Shrouded (4 Side), Male Pins, Header
Voltage - IEC	250 V
Voltage - UL	300 V

TBP02R1 Series

Part	Current - IEC	Type	Housing Material	Mounting Type	Termination Style	Number of Positions	Color	Positions Per Level	Material Flammability Rating	Contact Tail Length	Current - UL	Contact Mating Finish	Header Orientation Angle	Header Orientation	Insulation Height	Number of Levels	Operating Temperature (Min)	Operating Temperature (Max)	Features	Contact Material	Voltage - IEC	Pitch	Voltage - UL
Same Sky (Formerly CUI Devices) TBP02R1W-381-12BE	7 A	Header Male Pins Shrouded (4 Side)	Nylon 6/6 PA66 Polyamide	Through Hole	Solder	12	Blue	12	UL94 V-0	0.138 in	8 A	Tin	90 °	Right Angle	0.284 in	1	-40 °C	105 °C	Mating Flange	Copper Alloy	250 V	0.15 in	300 V
Same Sky (Formerly CUI Devices) TBP02R1-381-07BE	7 A	Header Male Pins Shrouded (4 Side)	Nylon 6/6 PA66 Polyamide	Through Hole	Solder	7	Blue	7	UL94 V-0	0.138 in	8 A	Tin	90 °	Right Angle	0.284 in	1	-40 °C	105 °C		Copper Alloy	250 V	0.15 in	300 V
Same Sky (Formerly CUI Devices) TBP02R1W-381-02BE	7 A	Header Male Pins Shrouded (4 Side)	Nylon 6/6 PA66 Polyamide	Through Hole	Solder	2	Blue	2	UL94 V-0	0.138 in	8 A	Tin	90 °	Right Angle	0.284 in	1	-40 °C	105 °C	Mating Flange	Copper Alloy	250 V	0.15 in	300 V
Same Sky (Formerly CUI Devices) TBP02R1-381-04BE	7 A	Header Male Pins Shrouded (4 Side)		Through Hole	Solder	4	Blue	4			8 A	Tin	90 °	Right Angle		1	-40 °C	105 °C	Notch Guide		250 V	0.15 in	300 V
Same Sky (Formerly CUI Devices) TBP02R1W-381-04BE	7 A	Header Male Pins Shrouded (4 Side)	Nylon 6/6 PA66 Polyamide	Through Hole	Solder	4	Blue	4	UL94 V-0	0.138 in	8 A	Tin	90 °	Right Angle	0.284 in	1	-40 °C	105 °C	Mating Flange	Copper Alloy	250 V	0.15 in	300 V
Same Sky (Formerly CUI Devices) TBP02R1-381-05BE	7 A	Header Male Pins Shrouded (4 Side)	Nylon 6/6 PA66 Polyamide	Through Hole	Solder	5	Blue	5	UL94 V-0	0.138 in	8 A	Tin	90 °	Right Angle	0.284 in	1	-40 °C	105 °C	Notch Guide	Copper Alloy	250 V	0.15 in	300 V
Same Sky (Formerly CUI Devices) TBP02R1-381-09BE	7 A	Header Male Pins Shrouded (4 Side)		Through Hole	Solder	9	Blue	9			8 A	Tin	90 °	Right Angle		1	-40 °C	105 °C			250 V	0.15 in	300 V
Same Sky (Formerly CUI Devices) TBP02R1-381-14BE	7 A	Header Male Pins Shrouded (4 Side)		Through Hole	Solder	14	Blue	14			8 A	Tin	90 °	Right Angle		1	-40 °C	105 °C			250 V	0.15 in	300 V
Same Sky (Formerly CUI Devices) TBP02R1W-381-08BE	7 A	Header Male Pins Shrouded (4 Side)		Through Hole	Solder	8	Blue	8			8 A	Tin	90 °	Right Angle		1	-40 °C	105 °C	Mating Flange		250 V	0.15 in	300 V
Same Sky (Formerly CUI Devices) TBP02R1-381-02BE	7 A	Header Male Pins Shrouded (4 Side)		Through Hole	Solder	2	Blue	2			8 A	Tin	90 °	Right Angle		1	-40 °C	105 °C	Notch Guide		250 V	0.15 in	300 V
