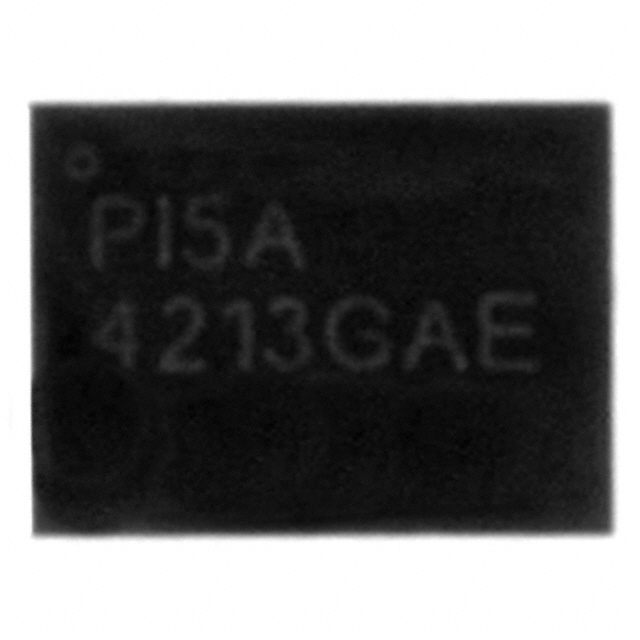

PI5A4213GAEX

Obsolete

Diodes Inc

IC SWITCH SP3T X 2 2OHM 12CSP

Search across all available documentation for this part.

Obsolete

Diodes Inc

IC SWITCH SP3T X 2 2OHM 12CSP

Technical Specifications

Parameters and characteristics for this part

Specification	PI5A4213GAEX

-3db Bandwidth	30 MHz
Channel Capacitance (CS(off), CD(off)) [custom]	50 pF
Channel Capacitance (CS(off), CD(off)) [custom]	50 pF
Channel-to-Channel Matching (ΔRon) [Max]	100 mOhm
Charge Injection	35 pC
Crosstalk	-72 dB
Current - Leakage (IS(off)) (Max)	80 nA
Mounting Type	Surface Mount
Multiplexer/Demultiplexer Circuit	3:1
Number of Circuits	2
On-State Resistance (Max) [Max]	2 Ohm
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	12-WFBGA, WLCSP
Supplier Device Package	12-CSP
Supplier Device Package [x]	2
Supplier Device Package [y]	1.5
Switch Circuit	SP3T
Switch Time (Ton, Toff) (Max) [custom]	15 ns
Switch Time (Ton, Toff) (Max) [custom]	12 ns
Voltage - Supply, Single (V+) [Max]	5.5 V
Voltage - Supply, Single (V+) [Min]	1.65 V

Part	Crosstalk	Channel-to-Channel Matching (ΔRon) [Max]	Package / Case	Charge Injection	Number of Circuits	Current - Leakage (IS(off)) (Max)	Multiplexer/Demultiplexer Circuit	Switch Circuit	Mounting Type	-3db Bandwidth	Channel Capacitance (CS(off), CD(off)) [custom]	Channel Capacitance (CS(off), CD(off)) [custom]	On-State Resistance (Max) [Max]	Switch Time (Ton, Toff) (Max) [custom]	Switch Time (Ton, Toff) (Max) [custom]	Voltage - Supply, Single (V+) [Min]	Voltage - Supply, Single (V+) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package [x]	Supplier Device Package [y]	Supplier Device Package
Diodes Inc PI5A4213GAEX	-72 dB	100 mOhm	12-WFBGA WLCSP	35 pC	2	80 nA	3:1	SP3T	Surface Mount	30 MHz	50 pF	50 pF	2 Ohm	15 ns	12 ns	1.65 V	5.5 V	85 °C	-40 °C	2	1.5	12-CSP
