4106-001LF
ActiveTusonix a Subsidiary of CTS Electronic Components
FILTER LC(PI) 4500PF CUSTOM
4106-001LF
ActiveTusonix a Subsidiary of CTS Electronic Components
FILTER LC(PI) 4500PF CUSTOM
Description
General part information
4106-001LF

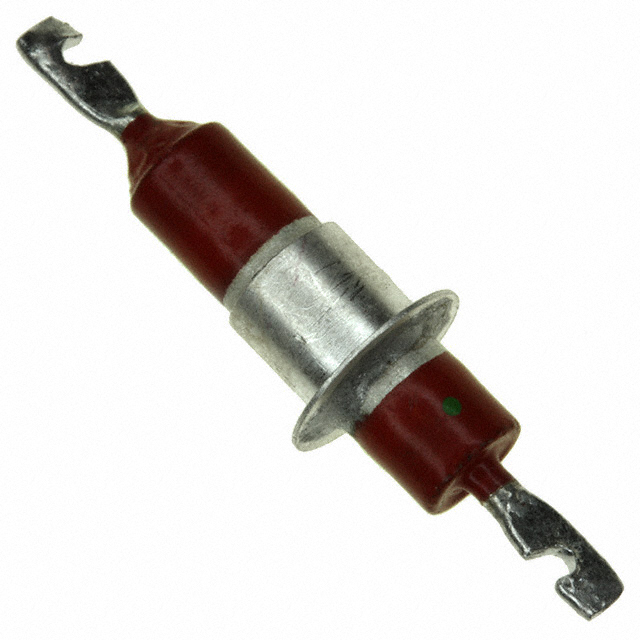

LC (Pi) EMI Filter 3rd Order Low Pass 1 Channel C = 4500pF 25 A Axial, Eyelet - Hook Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | 4106-001LF |
|---|---|
| Attenuation Value | 50 dB |
| Capacitance | 4500 pF |
| Current | 25 A |
| ESD Protection | No |
| Filter Order | 3 |
| Mounting Type | Custom |
| Number of Channels | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial, Eyelet - Hook Lead |
| Size / Dimension Diameter | 0.312 in |
| Size / Dimension Length | 0.625 in |
| Technology | LC (Pi) |
| Type | Low Pass |
| Voltage - Rated | 500 V |
