Description
General part information

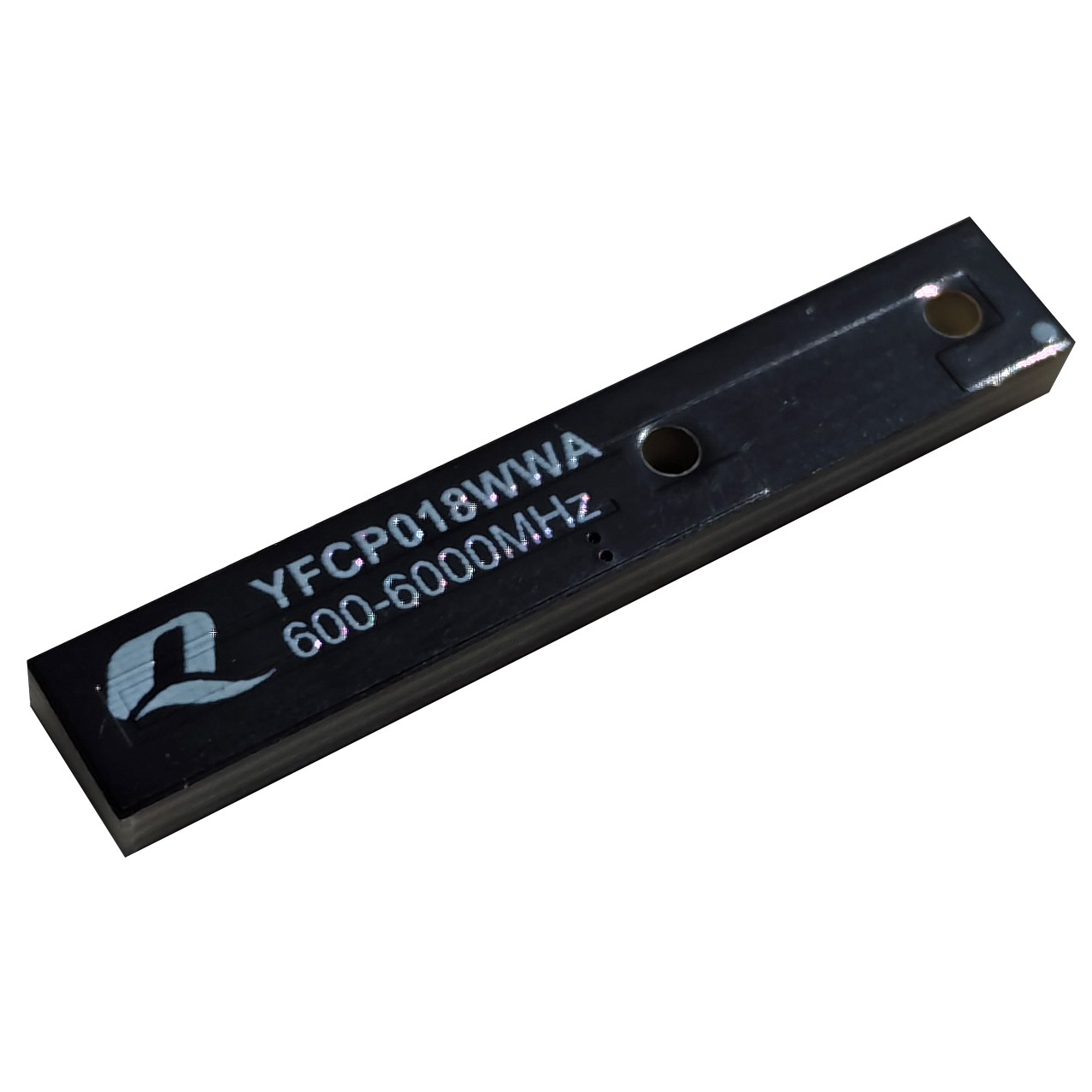

YFCP018WWA
EMBEDDED ANTENNA
Technical Specifications
Parameters and characteristics for this part
| Specification | YFCP018WWA |
|---|---|
| Antenna Type | Chip |
| Applications | 5G |
| Frequency (Center/Band) | 4.7GHz, 5.5GHz, 1.47GHz, 2.2GHz, 788.5MHz, 3.75GHz |
| Frequency (Center/Band) - 1 | 788.5 MHz |
| Frequency (Center/Band) - 2 | 1.47 GHz |
| Frequency (Center/Band) - 3 | 2.2 GHz |
| Frequency (Center/Band) - 4 | 3.75 GHz |
| Frequency (Center/Band) - 5 | 4.7 GHz |
| Frequency (Center/Band) - 6 | 5.5 GHz |
| Frequency Group | Wide Band |
| Frequency Range (Band 1) Maximum | 960 MHz |
| Frequency Range (Band 1) Minimum | 617 MHz |
| Frequency Range (Band 2) Maximum | 1.52 GHz |
| Frequency Range (Band 2) Minimum | 1.42 GHz |
| Frequency Range (Band 3) Maximum | 2.69 GHz |
| Frequency Range (Band 3) Minimum | 1.71 GHz |
| Frequency Range (Band 4) Maximum | 4.2 GHz |
| Frequency Range (Band 4) Minimum | 3.3 GHz |
| Frequency Range (Band 5) Maximum | 5 GHz |
| Frequency Range (Band 5) Minimum | 4.4 GHz |
| Frequency Range (Band 6) Maximum | 5.85 GHz |
| Frequency Range (Band 6) Minimum | 5.15 GHz |
| Gain | 2.9 dBi |
| Height (Max) | 0.118 in |
| Mounting Type | Surface Mount |
| Number of Bands | 6 |
| RF Family/Standard | Cellular |
| Termination | Solder |
