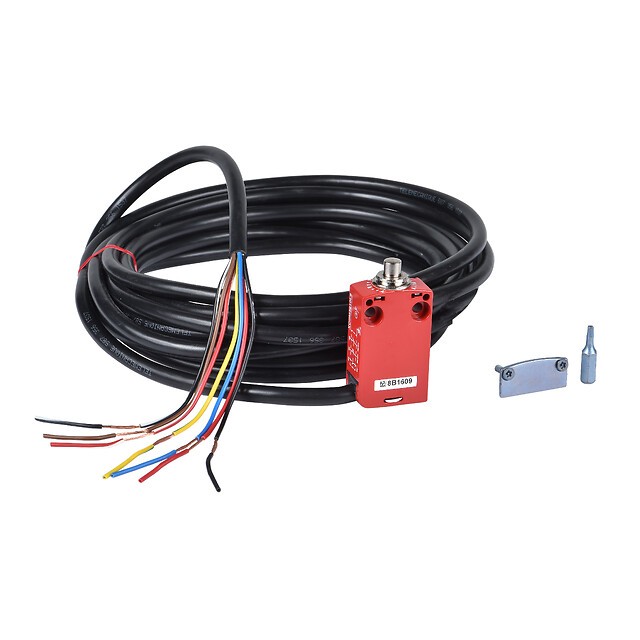

XCSM3702L1
ActiveSCHNEIDER ELECTRIC
LIMIT SWITCH; METAL ROLLER Ø11,6MM; NC X2 + NO; 1.5A; MAX.250VAC
XCSM3702L1
ActiveSCHNEIDER ELECTRIC
LIMIT SWITCH; METAL ROLLER Ø11,6MM; NC X2 + NO; 1.5A; MAX.250VAC
Description
General part information
XCSM3702L1
Switch 3PST-2NC/1NO Chassis Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | XCSM3702L1 |
|---|---|
| Actuator Type | Roller Plunger |
| Circuit | 3PST-2NC/1NO |
| Current Rating | 100 mA, 1.5 A |
| Ingress Protection Description | Dust Tight, Waterproof, Water Resistant |
| Ingress Protection IP Rating | IP67, IP66 |
| Mechanical Life (Cycles) | 10000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Switch Function | On-Off, Off-On |
| Termination Style | Connector |
| Voltage Rating - AC | 240 V |
| Voltage Rating - DC | 250 VDC |
