NPI-19J-300G2
ActiveAmphenol Advanced Sensors (NovaSensor)
SENSOR 300PSIG 1/8"NPT 14BIT
NPI-19J-300G2
ActiveAmphenol Advanced Sensors (NovaSensor)
SENSOR 300PSIG 1/8"NPT 14BIT
Description
General part information
NPI-19J-300G2

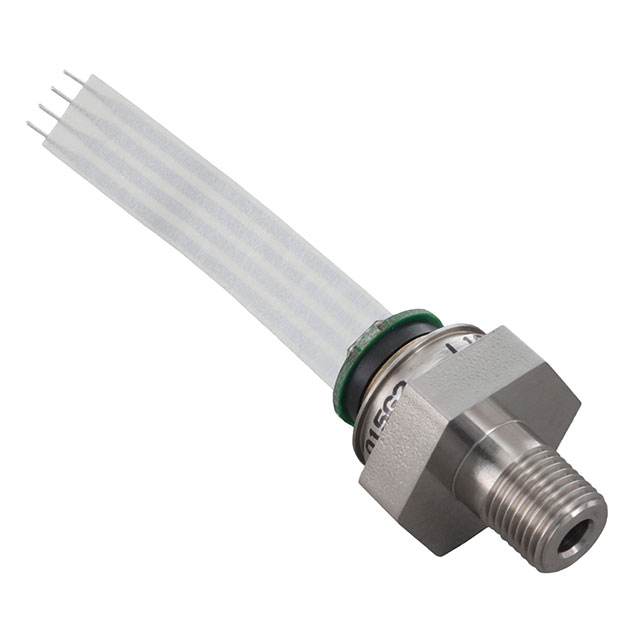

Pressure Sensor 300PSI (2068.43kPa) Gauge Male - 1/8" (3.18mm) NPT 14 b Cylinder
Technical Specifications
Parameters and characteristics for this part
| Specification | NPI-19J-300G2 |
|---|---|
| Accuracy | 1 % |
| Applications | Industrial Automation |
| Features | Temperature Compensated |
| Maximum Pressure | 600 PSI |
| Operating Pressure | 300 PSI |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Output Bits | 14 b |
| Output Type | I2C |
| Package / Case | Cylinder |
| Port Diameter | 0.125 " |
| Port Feature | NPT |
| Port Gender | Male |
| Port Style | Threaded |
| Pressure Type | Gauge |
| Termination Style | Wire Leads |
| Voltage - Supply (Maximum) | 5.5 V |
| Voltage - Supply (Minimum) | 2.5 V |
