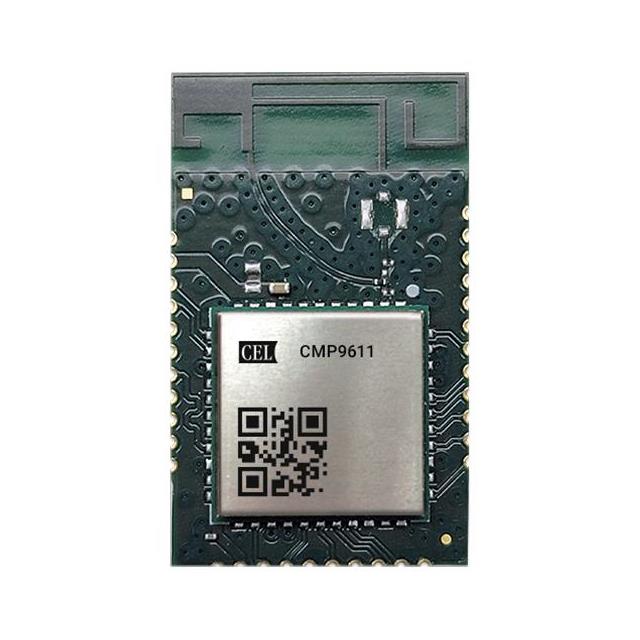

CMP9611-2C-R
ActiveRenesas Electronics Corporation
RF TXRX MOD BT WIFI PCB TH SMD
CMP9611-2C-R
ActiveRenesas Electronics Corporation
RF TXRX MOD BT WIFI PCB TH SMD
Description
General part information
CMP9611-2C-R
Bluetooth, WiFi 802.11a/b/g/n, Bluetooth v5.2 Transceiver Module 2.4GHz, 5GHz PCB Trace Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | CMP9611-2C-R |
|---|---|
| Antenna Type | PCB Trace |
| Data Rate | 2 Mbps |
| Frequency | 2.4 GHz, 5 GHz |
| Frequency | 2.4GHz, 5GHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Module |
| Power - Output | 20 dBm |
| Protocol | 802.11n, 802.11a, Bluetooth v5.2, 802.11g, 802.11b |
| RF Family/Standard | WiFi, Bluetooth |
| Serial Interfaces | UART, SDIO, SPI |
