ActiveTE Connectivity AMP Connectors
80POS, MIXED,TAB HSG,ASSY,SEALED
9-2236523-9
ActiveTE Connectivity AMP Connectors
80POS, MIXED,TAB HSG,ASSY,SEALED
Description
General part information
9-2236523-9

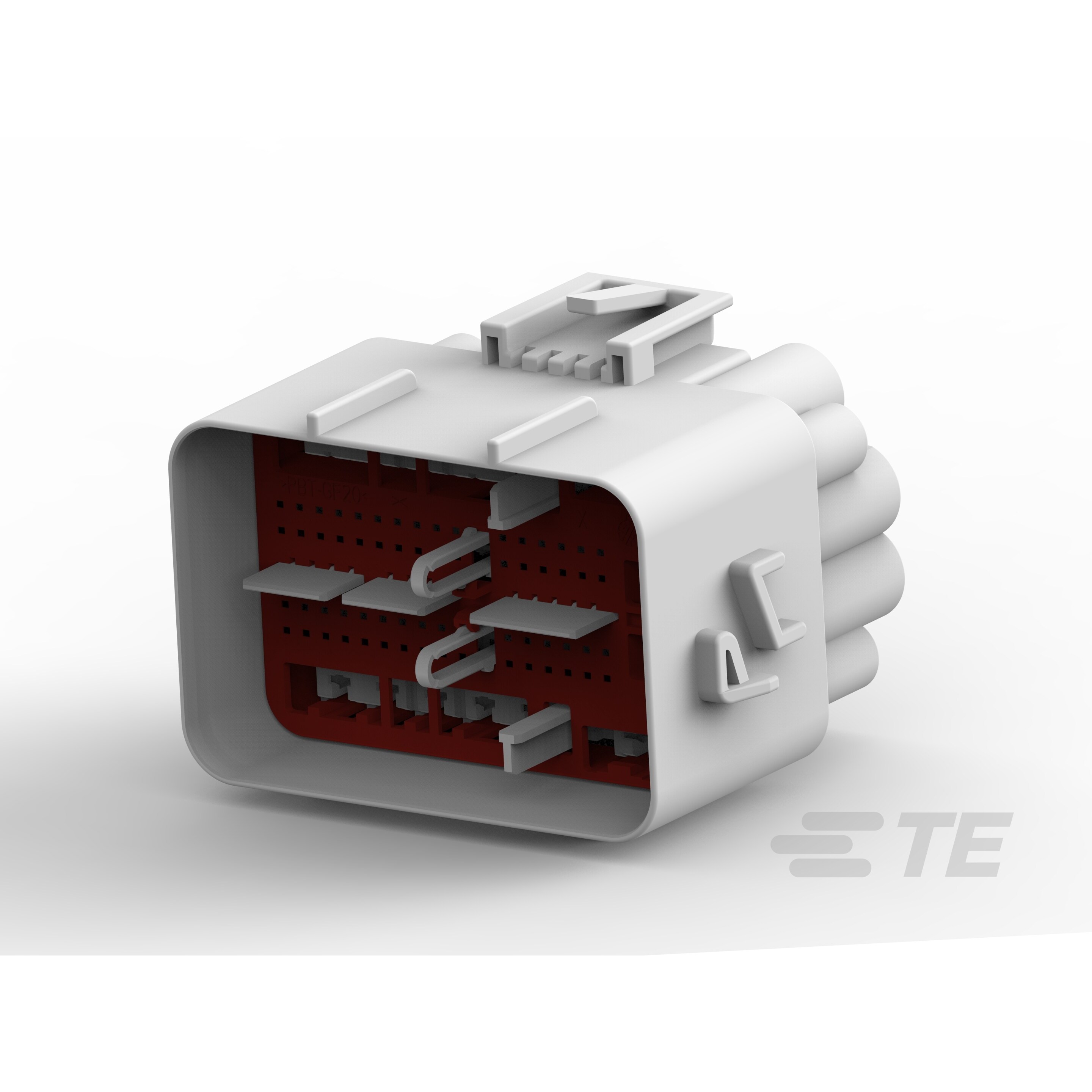

80 Position Housing, Housing for Male Terminals, Wire-to-Wire, 2.6 mm / 6.4 mm [.1 in / .25 in] Centerline, Sealable, Generation Y Connector System
Technical Specifications
Parameters and characteristics for this part
| Specification | 9-2236523-9 |
|---|---|
| Color | Natural |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Features | Sealed |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 80 |
| Number of Rows | 6 |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.102 in |
| Row Spacing | 0.146 in |
