Description
General part information

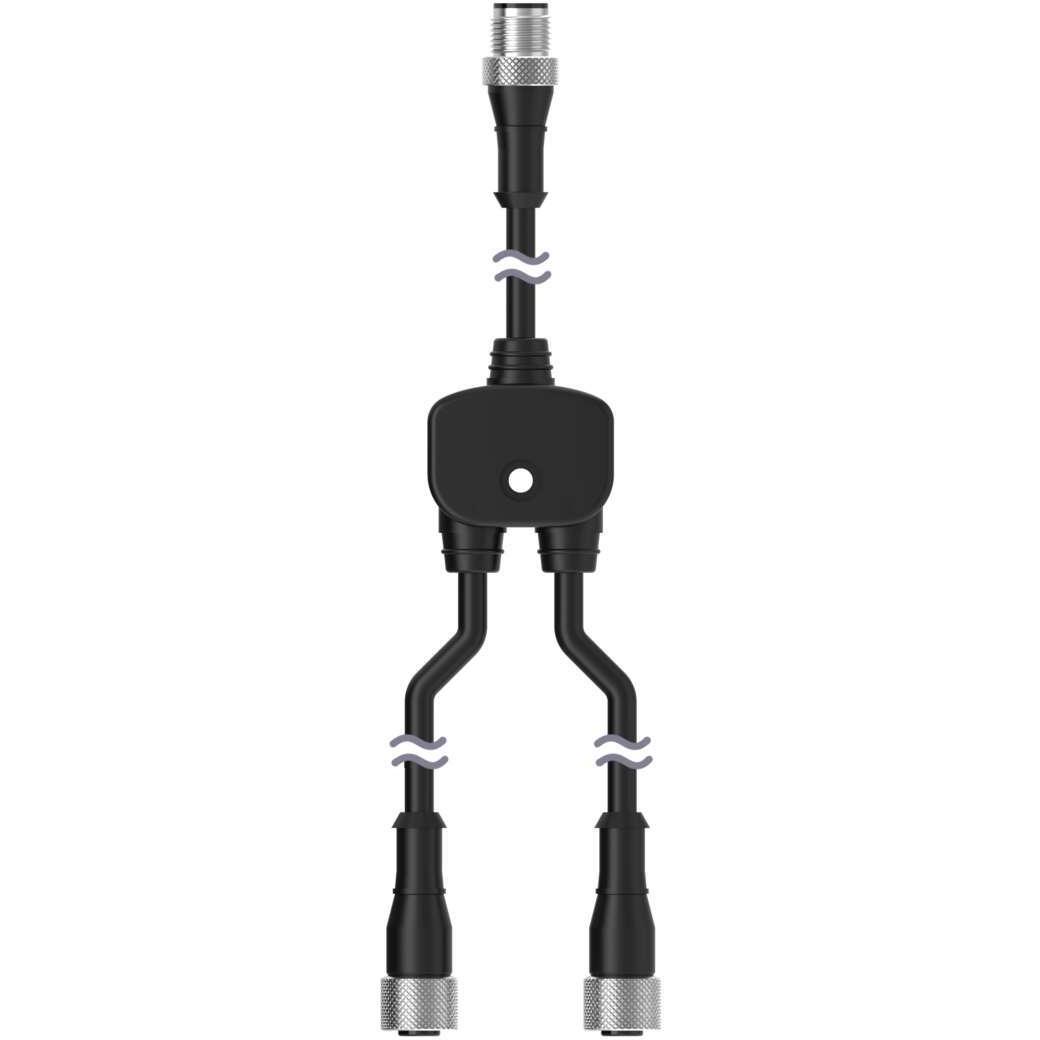

CSB-M1246M1246
SPLITTER CABLE; 4-PIN M12 MALE T
Technical Specifications
Parameters and characteristics for this part
| Specification | CSB-M1246M1246 |
|---|---|
| 1st Connector Gender | Male Pins |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Number of Positions | 4 positions |
| 1st Connector Number of Positions Loaded | All |
| 1st Connector Shell Size - Insert | M12 |
| 1st Connector Type | Receptacle |
| 2nd Connector Count | 2 pcs |
| 2nd Connector Gender | Female Sockets |
| 2nd Connector Gender (Count) | 2 |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Connector Number of Positions | 4 |
| 2nd Connector Number of Positions Loaded | All |
| 2nd Connector Shell Size - Insert (Code) | M12 |
| 2nd Connector Type | Plug |
| Assembly Configuration | Y-Adapter on One End |
| Cable Material | Polyvinyl Chloride (PVC) |
| Cable Type | Round |
| Color | Black |
| Length | 13.12 ft |
| Shielding | Unshielded |
