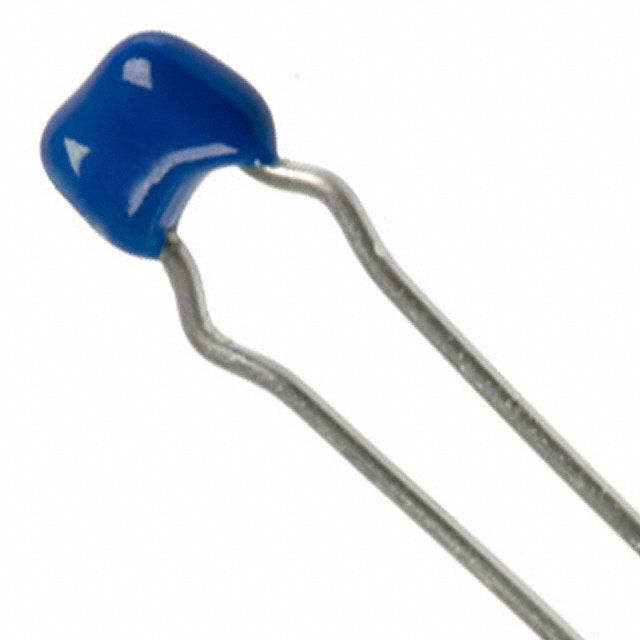

B37982N5104M054
ObsoleteEPCOS - TDK Electronics
CAP CER 0.1UF 50V Z5U RADIAL
B37982N5104M054
ObsoleteEPCOS - TDK Electronics
CAP CER 0.1UF 50V Z5U RADIAL
Description
General part information
B37982N5104M054
0.1 µF ±20% 50V Ceramic Capacitor Z5U Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | B37982N5104M054 |
|---|---|
| Applications | General Purpose |
| Capacitance | 0.1 µF |
| Height - Seated (Max) | 0.098 in |
| Lead Spacing | 0.098 in |
| Lead Style | Formed Leads - Kinked |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -30 °C |
| Package / Case | Radial |
| Size / Dimension Length | 0.217 in |
| Size / Dimension Width | 0.197 in |
| Temperature Coefficient | Z5U |
| Tolerance | 20 % |
| Voltage - Rated | 50 V |
