Specification	R15P209S/P

Applications	ITE (Commercial), Medical
Current - Output (Max)	222 mA
Efficiency	75 %
Features	SCP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package Leads	4 Leads
Package Name	7-SIP Module
Power (Watts)	2 w
Size / Dimension Height	0.49 in
Size / Dimension Length	0.77 in
Size / Dimension Width	0.39 in
Type	Isolated Module
Voltage - Input (Max)	16.5 V
Voltage - Input (Min)	13.5 V
Voltage - Isolation	6.4 kV
Voltage - Output 1	9 V

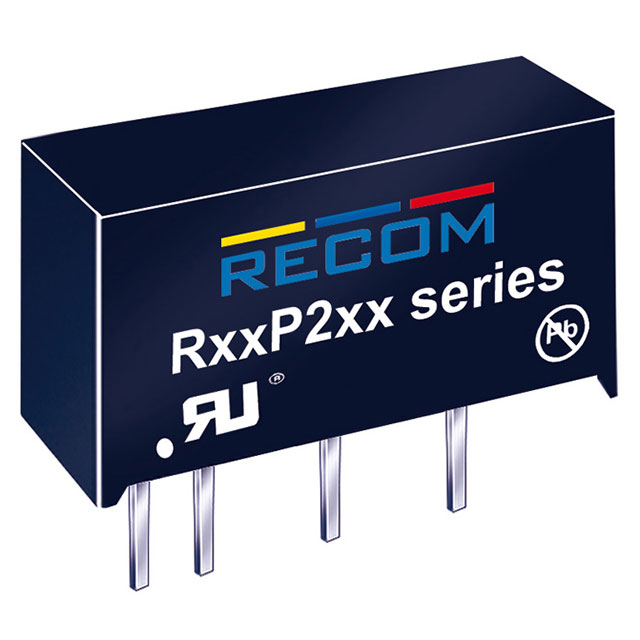

RxxP2xx Series

...

Part	Features	Efficiency	Voltage - Isolation	Voltage - Input (Min)	Operating Temperature (Min)	Operating Temperature (Max)	Package Leads	Package Name	Power (Watts)	Applications	Type	Voltage - Output 1	Number of Outputs	Voltage - Output 2	Size / Dimension Length	Size / Dimension Width	Size / Dimension Height	Current - Output (Max)	Mounting Type	Voltage - Input (Max)
Recom Power R12P212D/P	SCP	75 %	6.4 kV	10.8 V	-40 °C	85 °C	5 Leads	7-SIP	2 w	ITE (Commercial) Medical	Isolated Module	12 V	2	-12 V	0.77 in	0.39 in	0.49 in	85 mA	Through Hole	13.2 V
Recom Power R15P205D/P	SCP	75 %	6.4 kV	13.5 V	-40 °C	85 °C	5 Leads	7-SIP	2 w	ITE (Commercial) Medical	Isolated Module	5 V	2	-5 V	0.77 in	0.39 in	0.49 in	200 mA	Through Hole	16.5 V
Recom Power R12P205S		75 %	6.4 kV	10.8 V	-40 °C	85 °C	4 Leads	7-SIP Module	2 w	ITE (Commercial) Medical	Isolated Module	5 V	1		0.77 in	0.39 in	0.49 in	400 mA	Through Hole	13.2 V
Recom Power R12P209S/P/X2	SCP	75 %	6.4 kV	10.8 V	-40 °C	85 °C	4 Leads	7-SIP Module	2 w	ITE (Commercial) Medical	Isolated Module	9 V	1		0.77 in	0.39 in	0.49 in	222 mA	Through Hole	13.2 V
Recom Power R05P209S		75 %	6.4 kV	4.5 V	-40 °C	85 °C	4 Leads	7-SIP 7-SIP Module	2 w	ITE (Commercial) Medical	Isolated Module	9 V	1		0.77 in	0.39 in	0.49 in	222 mA	Through Hole	5.5 V
Recom Power R05P205D		75 %	6.4 kV	4.5 V	-40 °C	85 °C	5 Leads	7-SIP	2 w	ITE (Commercial) Medical	Isolated Module	5 V	2	-5 V	0.77 in	0.39 in	0.49 in	200 mA	Through Hole	5.5 V
Recom Power R24P209S/P	SCP	75 %	6.4 kV	21.6 V	-40 °C	85 °C	4 Leads	7-SIP Module	2 w	ITE (Commercial) Medical	Isolated Module	9 V	1		0.77 in	0.39 in	0.49 in	222 mA	Through Hole	26.4 V
Recom Power R05P23.3S/P	SCP	70 %	6.4 kV	4.5 V	-40 °C	85 °C	4 Leads	7-SIP Module	2 w	ITE (Commercial) Medical	Isolated Module	3.3 V	1		0.77 in	0.39 in	0.49 in	600 mA	Through Hole	5.5 V
Recom Power R24P209D/P	SCP	75 %	6.4 kV	21.6 V	-40 °C	90 °C	5 Leads	7-SIP	2 w	ITE (Commercial) Medical	Isolated Module	9 V	2	-9 V	0.77 in	0.39 in	0.49 in	111 mA	Through Hole	26.4 V
Recom Power R15P23.3D/P	SCP	70 %	6.4 kV	13.5 V	-40 °C	85 °C	5 Leads	7-SIP	2 w	ITE (Commercial) Medical	Isolated Module	3.3 V	2	-3.3 V	0.77 in	0.39 in	0.49 in	300 mA	Through Hole	16.5 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

R15P209S/P | Datasheet
