920-0201-01

Active

Schmartboard, Inc.

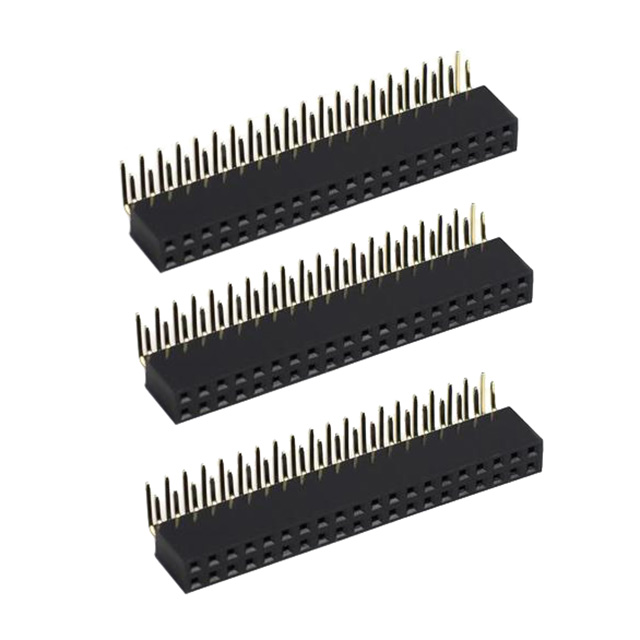

CONN HDR 40POS PCB R/A 3PC

Search across all available documentation for this part.

Active

Schmartboard, Inc.

CONN HDR 40POS PCB R/A 3PC

Technical Specifications

Parameters and characteristics for this part

CONN HDR 40POS PCB R/A 3PC

Part	Contact Shape	Number of Positions Loaded	Insulation Color	Number of Rows	Number of Positions	Contact Type	Connector Type	Termination	Mounting Type	Fastening Type
Schmartboard, Inc. 920-0201-01	Square	All	Black	2	40	Female Socket	Header	Solder	Through Hole, Right Angle	Push-Pull

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.00

General part information

40 Position Header Connector Through Hole, Right Angle
