9411 060U500

Active

Belden Inc.

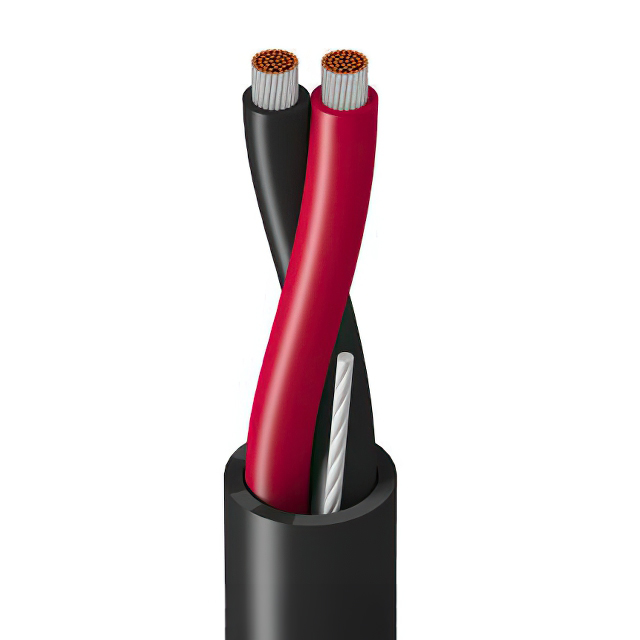

CABLE 2COND 14AWG CHROME

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 2COND 14AWG CHROME

Technical Specifications

Parameters and characteristics for this part

Specification	9411 060U500

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	42
Conductor Strand [custom]	30
Features	Rip Cord
Jacket (Insulation) Diameter [diameter]	8.18 mm
Jacket (Insulation) Diameter [diameter]	0.322 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.067 mm
Jacket (Insulation) Thickness	0.042 in
Jacket Color	Chrome
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 2464
Usage	Instrumentation
Voltage	300 V
Wire Gauge	13.5 AWG

Part	Conductor Strand [custom]	Conductor Strand [custom]	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Material	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Insulation	Length [x]	Length [x]	Wire Gauge	Conductor Material	Number of Conductors	Voltage	Usage	Ratings	Jacket Color	Features	Length	Length
Belden Inc. 9411 060U500	42	30	Multi-Conductor	8.18 mm	0.322 in	1.067 mm	0.042 in	Poly-Vinyl Chloride (PVC)	-30 ░C	105 ░C	Poly-Vinyl Chloride (PVC)	500 '	152.4 m	13.5 AWG	Copper Tinned	2	300 V	Instrumentation	UL Style 2464	Chrome	Rip Cord
Belden Inc. 9411 0602500	42	30	Multi-Conductor	8.18 mm	0.322 in	1.067 mm	0.042 in	Poly-Vinyl Chloride (PVC)	-30 ░C	105 ░C	Poly-Vinyl Chloride (PVC)			13.5 AWG	Copper Tinned	2	300 V	Instrumentation	UL Style 2464	Chrome	Rip Cord	2500 ft	762 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 (1 Pair) Conductor Multi-Conductor Cable Chrome 14 AWG 500.0' (152.4m)
