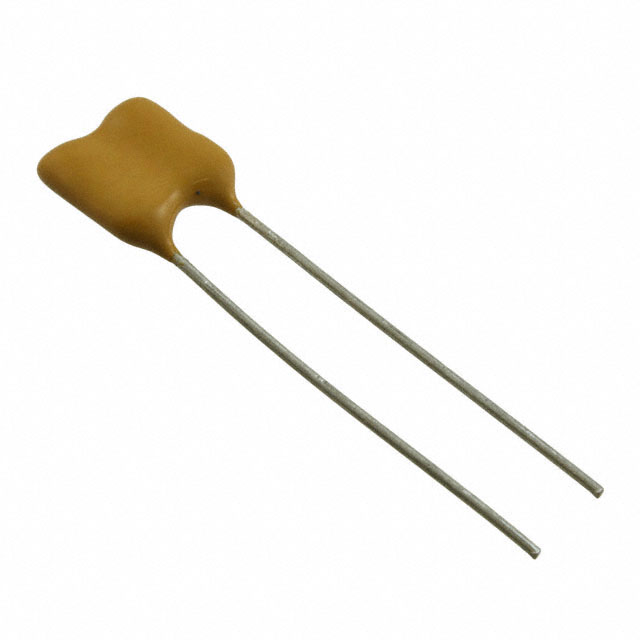

CDV16FF821JO3F
ActiveCornell Dubilier Knowles
CAP MICA 820PF 5% 1KV RADIAL
CDV16FF821JO3F
ActiveCornell Dubilier Knowles
CAP MICA 820PF 5% 1KV RADIAL
Description
General part information
CDV16FF821JO3F
820 pF Mica Capacitor 1 kV Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | CDV16FF821JO3F |
|---|---|
| Capacitance | 820 pF |
| Dielectric Material | Mica |
| Features | RF, Low Loss, High Q |
| Height - Seated (Max) | 12.7 mm |
| Lead Spacing | 0.232 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial |
| Size / Dimension Length | 0.461 in |
| Size / Dimension Width | 0.173 in |
| Tolerance | 5 % |
| Voltage - Rated | 1000 V |
