3240583

Active

Phoenix Contact

WIRE DUCT SOLID 2PC RIVET 6.56'

Search across all available documentation for this part.

Active

Phoenix Contact

WIRE DUCT SOLID 2PC RIVET 6.56'

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3240583	CD-HF 25 Series

Color	Blue	Blue, Gray
Features	Separate Snap in Lid (Included)	Separate Snap in Lid (Included)
Height	-	80 mm
Height	-	3.15 in
Height [z]	1.575 in	0.984 - 2.362 in
Height [z]	40 mm	25 - 60 mm
Length [x]	2 m	2 m
Length [x]	6.56 ft	6.56 ft
Material	PC/ABS, Halogen Free	PC/ABS, Halogen Free
Mounting Type	Rivet	Rivet
Width	25 mm	25 mm
Width [x]	0.984 in	0.984 in
Wire Duct Type	2 Piece	2 Piece
Wire Duct Type	Solid (Raceway)	Solid (Raceway)

WIRE DUCT SOLID 2PC RIVET 6.56'

Part	Length [x]	Length [x]	Mounting Type	Wire Duct Type	Wire Duct Type	Height [z]	Height [z]	Features	Color	Width	Width [x]	Material	Height [diameter]	Height [diameter]
Phoenix Contact 3240582	2 m	6.56 ft	Rivet	2 Piece	Solid (Raceway)	25 mm	0.984 in	Separate Snap in Lid (Included)	Blue	25 mm	0.984 in	PC/ABS, Halogen Free
Phoenix Contact 3240342	2 m	6.56 ft	Rivet	2 Piece	Solid (Raceway)	60 mm	2.362 in	Separate Snap in Lid (Included)	Gray	25 mm	0.984 in	PC/ABS, Halogen Free
Phoenix Contact 3240584	2 m	6.56 ft	Rivet	2 Piece	Solid (Raceway)	60 mm	2.362 in	Separate Snap in Lid (Included)	Blue	25 mm	0.984 in	PC/ABS, Halogen Free
Phoenix Contact 3240583	2 m	6.56 ft	Rivet	2 Piece	Solid (Raceway)	40 mm	1.575 in	Separate Snap in Lid (Included)	Blue	25 mm	0.984 in	PC/ABS, Halogen Free
Phoenix Contact 3240343	2 m	6.56 ft	Rivet	2 Piece	Solid (Raceway)			Separate Snap in Lid (Included)	Gray	25 mm	0.984 in	PC/ABS, Halogen Free	80 mm	3.15 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

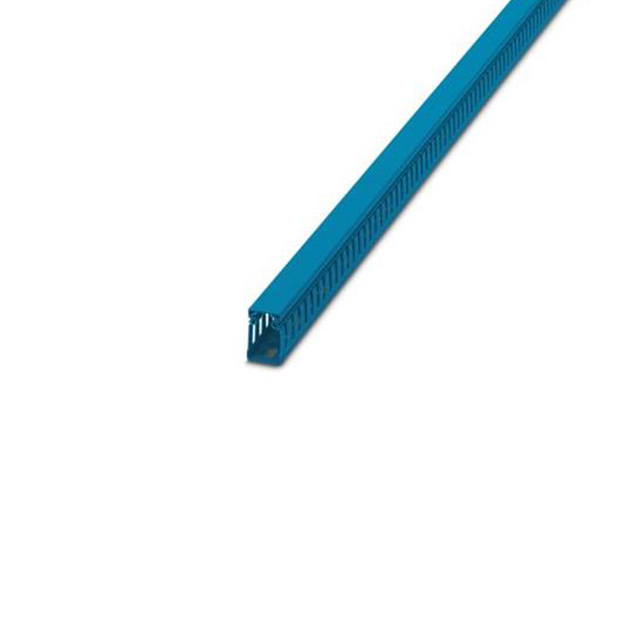

Wire Duct Blue Solid (Raceway), 2 Piece Rivet 6.56' (2.00m)

Technical documentation and resources
