109BF24HC2

Active

Sanyo Denki America Inc.

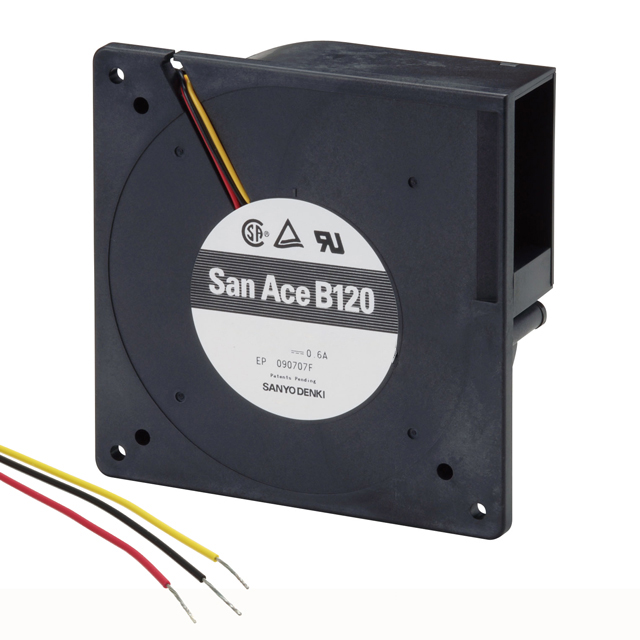

FAN BLOWER 120X32MM 24VDC WIRE

Search across all available documentation for this part.

Active

Sanyo Denki America Inc.

FAN BLOWER 120X32MM 24VDC WIRE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	109BF24HC2	109BF24 Series

Air Flow	0.77 m³/min	0.602 - 0.77 m³/min
Air Flow	27.5 CFM	21.5 - 27.5 CFM
Approval Agency	CSA, TUV, UL	CSA, TUV, UL
Bearing Type	Ball	Ball
Fan Type	Blower	Blower
Features	Speed Sensor (Tach)	Speed Sensor (Tach), Locked Rotor Sensor
Lifetime @ Temp.	40000 Hrs	40000 Hrs
Material - Blade	Plastic	Plastic
Material - Frame	Plastic	Plastic
Noise	52 dB	44 - 52 dB
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	-20 °C	-20 °C
Operating Temperature [Min]	-20 C	-20 C
Power (Watts)	7.2 W	3.84 - 7.2 W
RPM	2400 RPM	1900 - 2400 RPM
Size / Dimension	Square/Rounded	Square/Rounded
Size / Dimension [x]	120 mm	120 mm
Size / Dimension [z]	120 mm	120 mm
Static Pressure	175.4 Pa	110 - 175.4 Pa
Static Pressure	0.704 in H2O	0.441 - 0.704 in H2O
Termination	3 Wire Leads	3 Wire Leads, 2 Wire Leads
Voltage - Rated	24 VDC	24 VDC
Weight	0.604 lb	0.604 lb
Weight	273.97 g	273.97 g
Width [y]	32 mm	32 mm

FAN BLOWER 120X32MM 24VDC WIRE

Part	Bearing Type	RPM	Width [y]	Noise	Weight	Weight	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Static Pressure	Static Pressure	Size / Dimension	Size / Dimension [x]	Size / Dimension [z]	Material - Frame	Power (Watts)	Features	Fan Type	Termination	Lifetime @ Temp.	Air Flow	Air Flow	Voltage - Rated	Material - Blade	Approval Agency
Sanyo Denki America Inc. 109BF24MC2	Ball	1900 RPM	32 mm	44 dB	0.604 lb	273.97 g	60 °C	-20 °C	-20 C	60 °C	0.441 in H2O	110 Pa	Square/Rounded	120 mm	120 mm	Plastic	3.84 W	Speed Sensor (Tach)	Blower	3 Wire Leads	40000 Hrs	0.602 m³/min	21.5 CFM	24 VDC	Plastic	CSA, TUV, UL
Sanyo Denki America Inc. 109BF24HC2	Ball	2400 RPM	32 mm	52 dB	0.604 lb	273.97 g	60 °C	-20 °C	-20 C	60 °C	0.704 in H2O	175.4 Pa	Square/Rounded	120 mm	120 mm	Plastic	7.2 W	Speed Sensor (Tach)	Blower	3 Wire Leads	40000 Hrs	0.77 m³/min	27.5 CFM	24 VDC	Plastic	CSA, TUV, UL
Sanyo Denki America Inc. 109BF24HD2	Ball	2400 RPM	32 mm	52 dB	0.604 lb	273.97 g	60 °C	-20 °C	-20 C	60 °C	0.704 in H2O	175.4 Pa	Square/Rounded	120 mm	120 mm	Plastic	7.2 W	Locked Rotor Sensor	Blower	3 Wire Leads	40000 Hrs	0.77 m³/min	27.5 CFM	24 VDC	Plastic	CSA, TUV, UL
Sanyo Denki America Inc. 109BF24MA2	Ball	1900 RPM	32 mm	44 dB	0.604 lb	273.97 g	60 °C	-20 °C	-20 C	60 °C	0.441 in H2O	110 Pa	Square/Rounded	120 mm	120 mm	Plastic	3.84 W		Blower	2 Wire Leads	40000 Hrs	0.602 m³/min	21.5 CFM	24 VDC	Plastic	CSA, TUV, UL

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 51.32

General part information

Fan Blower 24VDC Square/Rounded - 120mm L x 120mm H Ball 27.5 CFM (0.770mł/min) 3 Wire Leads
