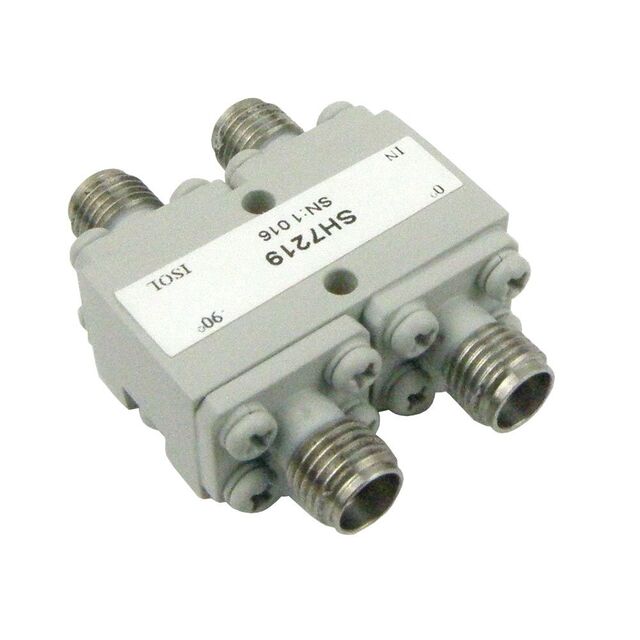

SH7219
ActiveFairview Microwave
HYBRID SMA 4MHZ-8GHZ 50 W
SH7219
ActiveFairview Microwave
HYBRID SMA 4MHZ-8GHZ 50 W
Description
General part information
SH7219
RF Directional Coupler General Purpose 4GHz ~ 8GHz 3dB Module, SMA Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | SH7219 |
|---|---|
| Applications | General Purpose |
| Coupler Type | Standard |
| Coupling Factor | 3 dB |
| Frequency (Max) | 8 GHz |
| Frequency (Min) | 4 GHz |
| Isolation | 18 dB |
| Package / Case | Module, SMA Connectors |
| Package Name | Module |
