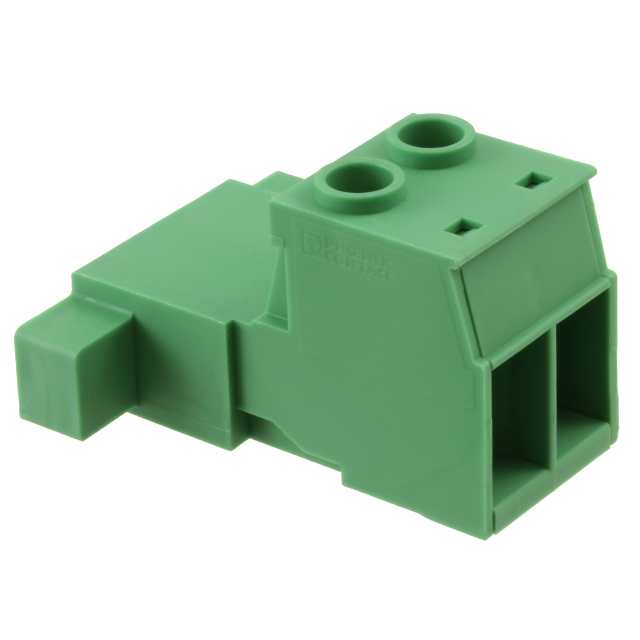

PLUGGABLE TERMINAL BLOCKS 2 POS 10.16MM INVERT PLUG 18-6AWG SCREW

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1975817

Active

Phoenix Contact

PLUGGABLE TERMINAL BLOCKS 2 POS 10.16MM INVERT PLUG 18-6AWG SCREW

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1975817	IPC Series

Color	Green	Green
Contact Mating Finish	Silver	Silver, Tin
Contact Tail Length	-	4.6 mm
Contact Tail Length	-	0.181 in
Current - IEC	76 A	41 - 125 A
Current - UL	55 A	41 - 115 A
Features	Mating Flange	Mating and Mounting Flange, Mating Flange
Header Orientation	-	90°, Right Angle
Housing Material	Polyamide (PA), Nylon	Polybutylene Terephthalate (PBT), Polyamide (PA), Nylon
Insulation Height	27.8 mm	27.8 - 28.5 mm
Insulation Height	1.094 "	1.094 - 1.122 in
Insulation Height	-	0.902 "
Insulation Height	-	22.9 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Through Hole, Free Hanging (In-Line)
Number of Levels	1	1
Number of Positions	2	2 - 10
Pitch [x]	10.16 mm	7.62 - 15 mm
Pitch [x]	0.4 in	0.3 - 0.591 in
Positions Per Level	2	2 - 10
Screw Size	M4	M3, M4
Termination Style	Screw - Rising Cage Clamp	Solder, Screw - Rising Cage Clamp
Torque - Screw [Max]	1.8 Nm	0.8 - 1.8 Nm
Torque - Screw [Max]	15.9 Lb-In	7.1 - 15.9 Lb-In
Torque - Screw [Min]	15 Lb-In	6.2 - 15 Lb-In
Torque - Screw [Min]	1.7 Nm	0.7 - 1.7 Nm
Type	-	Header, Blade Sockets
Voltage - IEC	1 kV	1 kV
Wire Gauge or Range - AWG [Max]	20 AWG	20 - 24 AWG
Wire Gauge or Range - AWG [Min]	6 AWG	6 - 8 AWG
Wire Gauge or Range - mm˛ [Max]	16 mm˛	10 - 16 mm˛
Wire Gauge or Range - mm˛ [Min]	0.75 mm˛	0.2 - 0.75 mm˛
Wire Gauge or Range - mm²	-	10 mm²
Wire Gauge or Range - mm²	-	0.2 mm²
Wire Strip Length	12 mm	10 - 12 mm

IPC Series

Pluggable Terminal Blocks 4 Pos 10.16mm pitch Thru Hole Invert Hdr

Part	Mounting Type	Features	Type	Material Flammability Rating	Header Orientation	Voltage - IEC	Number of Levels	Housing Material	Insulation Height	Insulation Height	Current - UL	Positions Per Level	Termination Style	Contact Tail Length	Contact Tail Length	Contact Mating Finish	Current - IEC	Color	Pitch [x]	Pitch [x]	Wire Strip Length	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Torque - Screw [Max]	Torque - Screw [Min]	Torque - Screw [Min]	Torque - Screw [Max]	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]	Number of Positions	Insulation Height [z]	Insulation Height [z]	Screw Size	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]
Phoenix Contact 1784923	Through Hole	Mating and Mounting Flange	Header, Blade Sockets	UL94 V-0	90°, Right Angle	1 kV	1	Polybutylene Terephthalate (PBT)	1.122 in	28.5 mm	115 A	3	Solder	4.6 mm	0.181 in	Silver	125 A	Green	0.591 in	15 mm
Phoenix Contact 1709128	Free Hanging (In-Line)			UL94 V-0		1 kV	1	Polyamide (PA), Nylon			41 A	10	Screw - Rising Cage Clamp			Tin	41 A	Green	0.3 in	7.62 mm	10 mm	24 AWG	8 AWG	7.1 Lb-In	0.7 Nm	6.2 Lb-In	0.8 Nm	0.2 mm˛	10 mm˛	10	0.902 "	22.9 mm	M3
Phoenix Contact 1709173	Free Hanging (In-Line)	Mating Flange		UL94 V-0		1 kV	1	Polyamide (PA), Nylon			41 A	4	Screw - Rising Cage Clamp			Tin	41 A	Green	0.3 in	7.62 mm	10 mm	24 AWG	8 AWG	7.1 Lb-In	0.7 Nm	6.2 Lb-In	0.8 Nm			4	0.902 "	22.9 mm	M3	10 mm²	0.2 mm²
Phoenix Contact 1975817	Free Hanging (In-Line)	Mating Flange		UL94 V-0		1 kV	1	Polyamide (PA), Nylon	1.094 "	27.8 mm	55 A	2	Screw - Rising Cage Clamp			Silver	76 A	Green	0.4 in	10.16 mm	12 mm	20 AWG	6 AWG	15.9 Lb-In	1.7 Nm	15 Lb-In	1.8 Nm	0.75 mm˛	16 mm˛	2			M4
