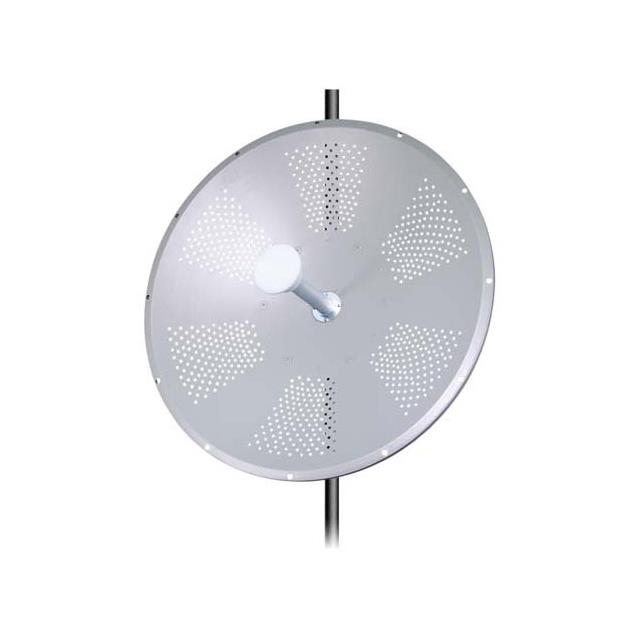

HG4958DP-34D
ActivePasternack
ANTDISH 4.9-5.8GHZ 34DBI
HG4958DP-34D
ActivePasternack
ANTDISH 4.9-5.8GHZ 34DBI
Description
General part information
HG4958DP-34D
5.3GHz 802.11n, ISM, WiMax™ Dish RF Antenna 4.75GHz ~ 5.85GHz 34dBi N Type Female (2) Mast Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | HG4958DP-34D |
|---|---|
| Antenna Type | Dish |
| Applications | WiMax™, 802.11N, ISM |
| Frequency (Center/Band) | 5.3 GHz |
| Frequency Group | SHF |
| Frequency Group Minimum (SHF) | 4 GHz |
| Frequency Range (Max) | 5.85 GHz |
| Frequency Range (Min) | 4.75 GHz |
| Gain | 34 dBi |
| Height (Max) | 35.43 in |
| Mounting Type | Mast Mount |
| Number of Bands | 1 |
| Power - Max | 100 VA |
| RF Family/Standard | WiFi, General ISM |
| Termination Count | 2 |
| Termination Type | N Type Female |
