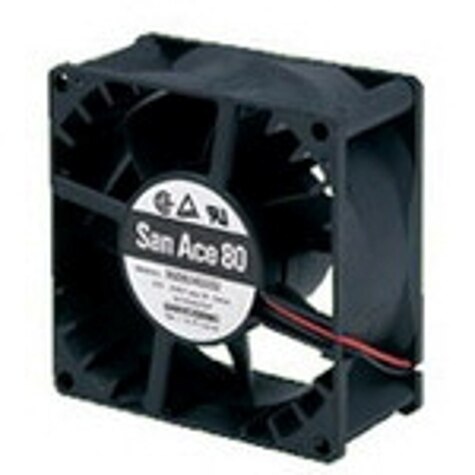

Specification	9G0812G102

Air Flow	90 CFM
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Locked Rotor Protection
Noise	51 dB
Operating Temperature (Max)	158 °F
Operating Temperature (Min)	-4 °F
Power (Watts)	13.2 W
RPM	6300 RPM
Size / Dimension Height	80 mm
Size / Dimension Length	80 mm
Size / Dimension Shape	Square
Static Pressure	0.847 in H2O
Termination	2 Wire Leads
Termination Leads Count	2 leads
Termination Type	Wire Leads
Voltage - Rated	12 VAC
Weight	6 oz
Width	38 mm

9G Type Series

Part	Fan Type	Air Flow	Features	Bearing Type	Termination Leads Count	Termination Type	Termination	Weight	RPM	Approval Agency	Width	Power (Watts)	Voltage - Rated	Noise	Operating Temperature (Min)	Operating Temperature (Max)	Static Pressure	Size / Dimension Height	Size / Dimension Shape	Size / Dimension Length	Material - Blade	Voltage Range (Max)	Voltage Range (Min)	Material - Frame	Lifetime	Current Rating
Sanyo Denki America Inc. 9G0612P4H0011	Tubeaxial	42.7 CFM	Locked Rotor Protection PWM Control Speed Sensor (Tach)	Ball	4 leads	Wire Leads	4 Wire Leads	0.199 lb	9500 RPM	cURus TUV	25 mm	6 W	12 VAC	49 dB	-4 °F	158 °F	0.9 in H2O	60 mm	Square	60 mm	Plastic	13.8 VDC	10.2 VDC	Plastic	40000 Hrs	0.5 A
Sanyo Denki America Inc. 9G0612S1D01	Tubeaxial	60 CFM	Locked Rotor Sensor	Ball	3	Wire Leads	3 Wire Leads	0.243 lb	10800 RPM	CSA TUV UL	38 mm	16.3 W	12 VAC	56 dB	-4 °F	158 °F	1.486 in H2O	60 mm	Square	60 mm	Plastic	13.8 VDC	7 V	Plastic	40000 Hrs	1.36 A
Sanyo Denki America Inc. 9G0612H4002	Tubeaxial	42.7 CFM	Locked Rotor Protection	Ball	2 leads	Wire Leads	2 Wire Leads	0.199 lb	9500 RPM	cURus TUV	25 mm	6 W	12 VAC	49 dB	-4 °F	158 °F	0.9 in H2O	60 mm	Square	60 mm	Plastic	13.8 VDC	10.2 VDC	Plastic	40000 Hrs	0.5 A
Sanyo Denki America Inc. 9G0612P1G011	Tubeaxial	65 CFM	Locked Rotor Protection PWM Control Speed Sensor (Tach)	Ball	4 leads	Wire Leads	4 Wire Leads	0.243 lb	11800 RPM	CSA TUV UL	38 mm	18.5 W	12 VAC		-4 °F	158 °F	1.747 in H2O	60 mm	Square	60 mm	Plastic	13.8 VDC	7 V	Plastic	40000 Hrs	1.54 A
Sanyo Denki America Inc. 9G0612P4S001	Tubeaxial	49.4 CFM	Locked Rotor Protection PWM Control Speed Sensor (Tach)	Ball	4 leads	Wire Leads	4 Wire Leads	0.199 lb	11000 RPM	CSA TUV UL	25 mm	8.04 W	12 VAC	53 dB	-4 °F	158 °F	1.2 in H2O	60 mm	Square	60 mm	Plastic	13.8 VDC	10.2 VDC	Plastic	40000 Hrs	0.67 A
Sanyo Denki America Inc. 9G0612S1011	Tubeaxial	60 CFM	Locked Rotor Protection Speed Sensor (Tach)	Ball	3	Wire Leads	3 Wire Leads	0.243 lb	10800 RPM	CSA TUV UL	38 mm	16.3 W	12 VAC	56 dB	-4 °F	158 °F	1.486 in H2O	60 mm	Square	60 mm	Plastic	13.8 VDC	7 V	Plastic	40000 Hrs	1.36 A
Sanyo Denki America Inc. 9G0612G1011	Tubeaxial	65 CFM	Locked Rotor Protection Speed Sensor (Tach)	Ball	3	Wire Leads	3 Wire Leads	0.243 lb	11800 RPM	CSA TUV UL	38 mm	18.5 W	12 VAC	58 dB	-4 °F	158 °F	1.747 in H2O	60 mm	Square	60 mm	Plastic	13.8 VDC	7 V	Plastic	40000 Hrs	1.54 A
Sanyo Denki America Inc. 9G0612G1D011	Tubeaxial	65 CFM	Locked Rotor Sensor	Ball	3	Wire Leads	3 Wire Leads	0.243 lb	11800 RPM	CSA TUV UL	38 mm	18.5 W	12 VAC	58 dB	-4 °F	158 °F	1.747 in H2O	60 mm	Square	60 mm	Plastic	13.8 VDC	7 V	Plastic	40000 Hrs	1.54 A
Sanyo Denki America Inc. 9G0612P4H001	Tubeaxial	42.7 CFM	Locked Rotor Protection PWM Control Speed Sensor (Tach)	Ball	4 leads	Wire Leads	4 Wire Leads	0.199 lb	9500 RPM	cURus TUV	25 mm	6 W	12 VAC	49 dB	-4 °F	158 °F	0.9 in H2O	60 mm	Square	60 mm	Plastic	13.8 VDC	10.2 VDC	Plastic	40000 Hrs	0.5 A
Sanyo Denki America Inc. 9G0612S101	Tubeaxial	60 CFM	Locked Rotor Protection Speed Sensor (Tach)	Ball	3	Wire Leads	3 Wire Leads	0.243 lb	10800 RPM	CSA TUV UL	38 mm	16.3 W	12 VAC	56 dB	-4 °F	158 °F	1.486 in H2O	60 mm	Square	60 mm	Plastic	13.8 VDC	7 V	Plastic	40000 Hrs	1.36 A
