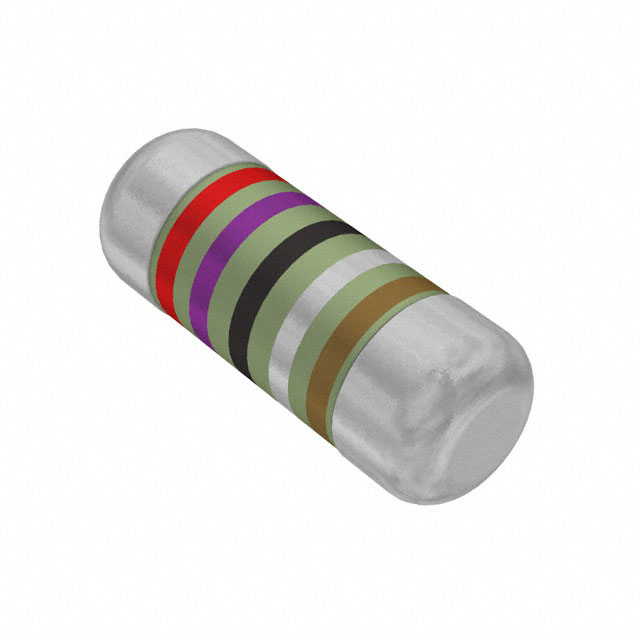

SMM02070C2708FBP00
ActiveVishay Dale
RES, 2R7, 1%, 1W, 0207, THIN FILM ROHS COMPLIANT: YES
SMM02070C2708FBP00
ActiveVishay Dale
RES, 2R7, 1%, 1W, 0207, THIN FILM ROHS COMPLIANT: YES
Description
General part information
SMM02070C2708FBP00
2.7 Ohms ±1% 1W Chip Resistor MELF, 0207 Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding Thin Film
Technical Specifications
Parameters and characteristics for this part
| Specification | SMM02070C2708FBP00 |
|---|---|
| Composition | Thin Film |
| Features | Anti-Sulfur, Pulse Withstanding, Automotive AEC-Q200 |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0207, MELF |
| Package Name | MELF |
| Power (Watts) | 1 W |
| Ratings | AEC-Q200 |
| Resistance | 2.7 Ohm |
| Size / Dimension Diameter | 0.087 in |
| Size / Dimension Length | 0.228 in |
| Temperature Coefficient | 50 ppm/°C |
| Tolerance | 1 % |
