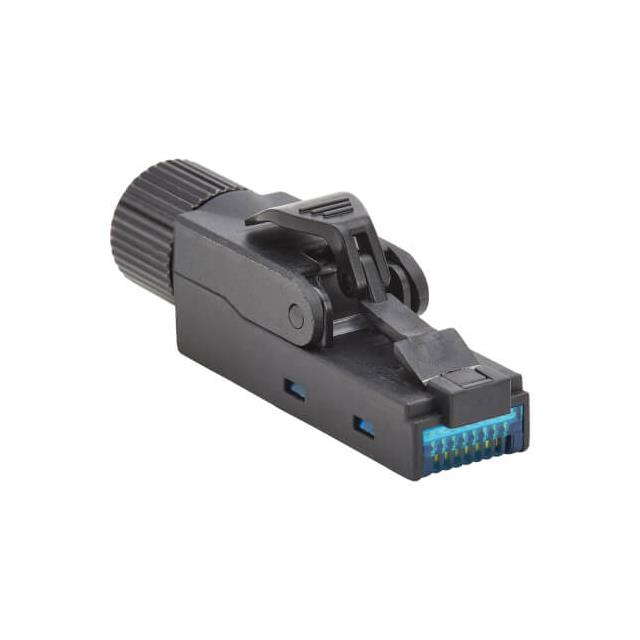

N232-USC6A-1
ActiveEaton Tripp Lite
CAT6A CLASS EA UTP FIELD-TERMINA
N232-USC6A-1
ActiveEaton Tripp Lite
CAT6A CLASS EA UTP FIELD-TERMINA
Description
General part information
N232-USC6A-1
Plug Modular Connector 8p8c (RJ45, Ethernet) Position Unshielded Cat6a IDC
Technical Specifications
Parameters and characteristics for this part
| Specification | N232-USC6A-1 |
|---|---|
| Cable Type | Solid or Stranded Wires, Round Cable |
| Color | Black |
| Connector Type | Ethernet, RJ45, Plug |
| Housing Material | Nylon 6/6, Glass Filled, PA66, Polyamide |
| Ingress Protection | IP20 |
| Number of Contacts | 8 |
| Number of Positions | 8 |
| Ratings | Cat6a |
| Shielding | Unshielded |
| Termination | IDC |
| Wire Gauge (AWG) (Max) | 27 AWG |
| Wire Gauge (AWG) (Min) | 23 AWG |
