095-902-588-250

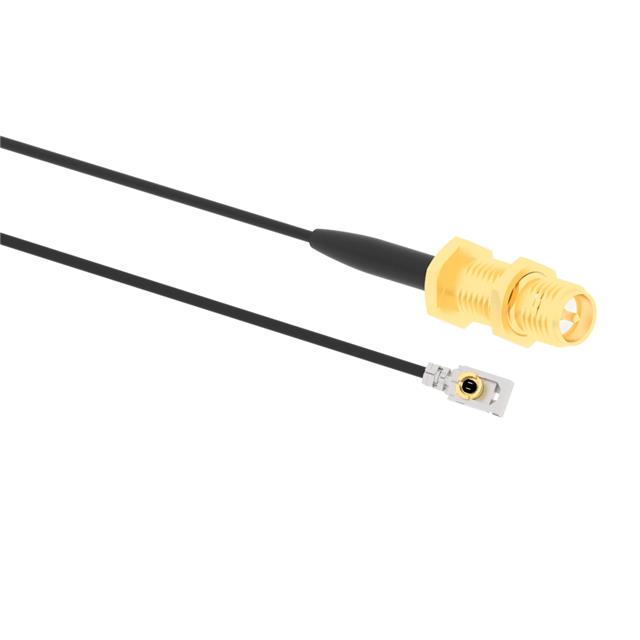

ActiveRF / COAXIAL CABLE ASSEMBLY, SMA RP BULKHEAD JACK TO 90° MHF1 PLUG, 1.13MM MICRO, 50 OHM, 9.8 "

095-902-588-250
ActiveRF / COAXIAL CABLE ASSEMBLY, SMA RP BULKHEAD JACK TO 90° MHF1 PLUG, 1.13MM MICRO, 50 OHM, 9.8 "
Description
General part information
095-902-588-250
Amphenol RF offers 50 ohm tamper-resistant ultraminiature cable assemblies featuring the I-PEX MHF® I LK locking connector on one end. These preconfigured assemblies are available in multiple configurations designed on ultra flexible 0.044inch micro-coax cable with compact SMA, RP-SMA, TNC and RP-TNC connectors with waterproof IP67-rated options. Many configurations of this assembly support higher frequency applications such as Wi-Fi 6E. MHF® I LK connectors are compatible with the AMC and industry-standard micro-miniature connectors. They feature a patented locking system which makes them well-suited for applications that experience continuous shock and vibration. The combination of ultraminiature and subminiature connectors on micro coax cable allows them to be utilized in designs that require a versatile, space conscious solution. Applications include drones, GPS, ruggedized mobile devices, industrial automation, robots, RFID and asset tracking.
Technical Specifications
Parameters and characteristics for this part
| Specification | 095-902-588-250 |
|---|---|
| 1st Connector | RP-SMA Jack |
| 1st Connector Mounting Feature | Front Side Nut, Bulkhead |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Male |
| 2nd Connector | IPEX MHFI LK (Locking) Plug, Right Angle, I-PEX MHFI LK (Locking) Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Outer Diameter | 1.13 mm |
| Cable Type | Coaxial Cable, OD Coaxial Cable, 1.13mm OD Coaxial Cable |
| Cable Type Size | 1.13 |
| Color | Black |
| Frequency - Max | 6000 MHz |
| Length | 9.843 in |
| Overall Impedance | 50 Ohms |
| Style | IPEX MHF1 LK to RP-SMA, I-PEX MHF1 LK to RP-SMA |
