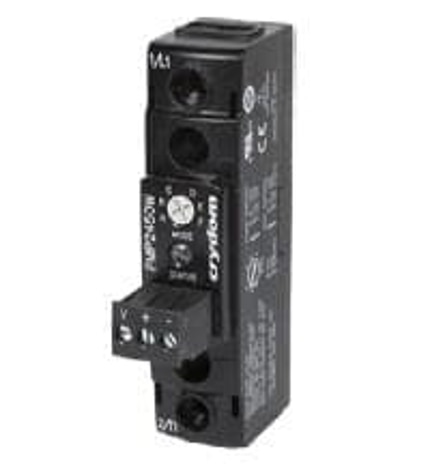

PMP4825WP
ActiveSensata-Crydom
SOLID STATE RELAYS - INDUSTRIAL MOUNT 25A 345-530VAC IOP, ELEVATOR SCRW
PMP4825WP
ActiveSensata-Crydom
SOLID STATE RELAYS - INDUSTRIAL MOUNT 25A 345-530VAC IOP, ELEVATOR SCRW
Description
General part information
PMP Series
Solid State Relays - Industrial Mount 25A 345-530VAC IOP, Elevator Scrw
Technical Specifications
Parameters and characteristics for this part
| Specification | PMP4825WP |
|---|---|
| Approval Agency | CE, cURus, IEC, EMC |
| Circuit | SPST-NO (1 Form A) |
| Input Current (Maximum) | 20 mA |
| Input Current (Minimum) | 4 mA |
| Input Voltage (Maximum) | 10 VDC |
| Input Voltage (Minimum) | 0 VDC |
| Load Current | 25 A |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | Proportional Control, AC |
| Package / Case | Module |
| Termination Style | Screw Terminal |
| Voltage - Input (DC) Maximum | 10 VDC |
| Voltage - Input (DC) Minimum | 0 V |
| Voltage - Load (Max) | 530 V |
| Voltage - Load (Min) | 345 V |
