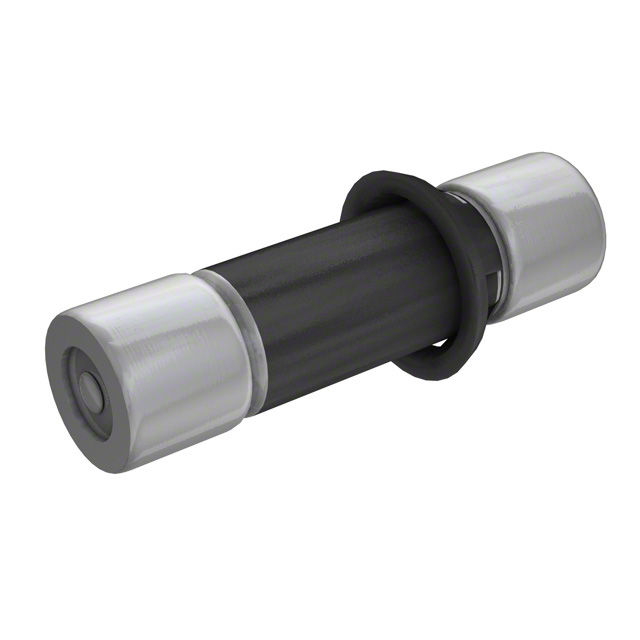

TPA-50
ActiveEaton - Electronics Division
FUSE, INDUSTRIAL / POWER, TELECOMMUNICATION, TELPOWER TPA SERIES, 50 A, 170 VDC, 14.61MM X 38.1MM
TPA-50
ActiveEaton - Electronics Division
FUSE, INDUSTRIAL / POWER, TELECOMMUNICATION, TELPOWER TPA SERIES, 50 A, 170 VDC, 14.61MM X 38.1MM
Description
General part information
TPA-50
Fuse
Technical Specifications
Parameters and characteristics for this part
| Specification | TPA-50 |
|---|---|
| Applications | Electrical, Industrial |
| Approval Agency | CE, UL |
| Breaking Capacity | 100 A |
| Current Rating | 50 A |
| Features | Indicating |
| Fuse Type | Cartridge |
| Mounting Type | Requires Holder |
| Package / Case | Cartridge, Non-Standard |
| Response Time | Fast Blow |
| Size / Dimension Diameter | 0.575 in |
| Size / Dimension Length | 1.496 in |
| Voltage Rating - DC | 170 VDC |
