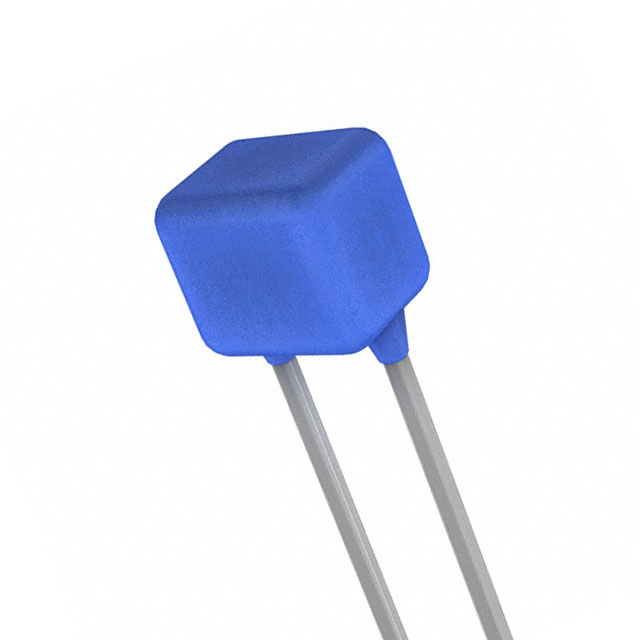

10HV20B103MC

Active

KEMET

CAP CER 10000PF 1KV X7R RADIAL

Search across all available documentation for this part.

Active

KEMET

CAP CER 10000PF 1KV X7R RADIAL

Technical Specifications

Parameters and characteristics for this part

CAP CER 10000PF 1KV X7R RADIAL

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Lead Spacing	Lead Spacing	Operating Temperature [Min]	Operating Temperature [Max]	Features	Temperature Coefficient	Voltage - Rated	Voltage - Rated	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Package / Case	Applications	Mounting Type	Capacitance	Lead Style	Tolerance
KEMET 10HV20B103MC	5.59 mm	0.22 in	0.17 in	4.32 mm	-55 °C	125 °C	High Voltage	X7R	1 kV	1000 V	5.08 mm	0.2 "	0.25 "	6.35 mm	Radial	SMPS Filtering	Through Hole	10000 pF	Straight	20 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

10000 pF ±20% 1000V (1kV) Ceramic Capacitor X7R Radial
