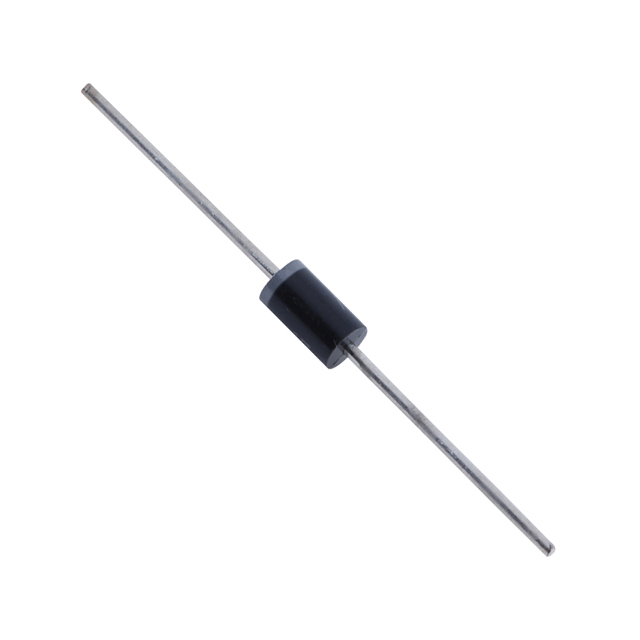

Specification	NTE5801

Current - Average Rectified (Io)	3 A
Current - Reverse Leakage	500 µA
Mounting Type	Through Hole
Operating Temperature - Junction (Max)	175 °C
Operating Temperature - Junction (Min)	-65 °C
Package / Case	DO-27, Axial, DO-201AA
Package Name	DO-27
Speed	Standard Recovery
Speed - Fast Recovery (Minimum)	200 mA, 500 ns
Speed - Recovery Current	200 mA, 200 mA
Speed - Recovery Time	500 ns
Technology	Standard
Voltage - DC Reverse (Vr) (Max)	100 V
Voltage - Forward (Vf) (Max)	1.2 V
