Description
General part information
PQ

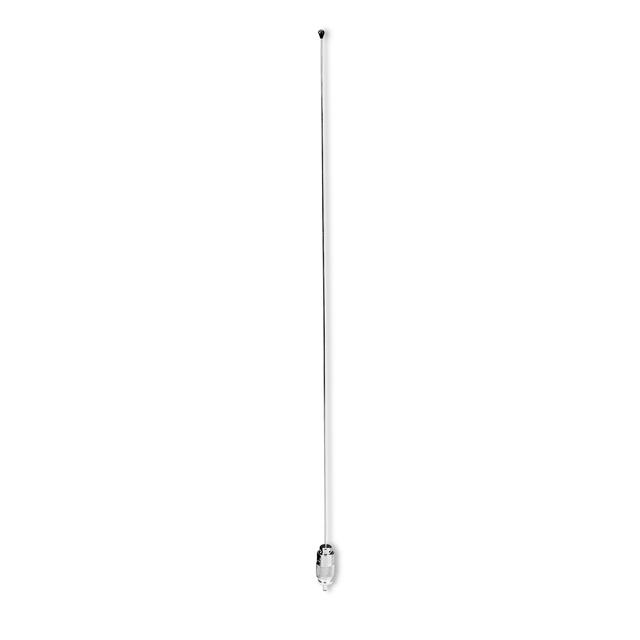

RF ANTENNA Whip, Straight Magnetic
Technical Specifications
Parameters and characteristics for this part
| Specification | PQ |
|---|---|
| Antenna Type | Straight, Whip |
| Frequency (Center/Band) | 324 MHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 1 GHz |
| Frequency Group Minimum (UHF) | 300 MHz |
| Frequency Range (Max) | 512 MHz |
| Frequency Range (Min) | 136 MHz |
| Gain | 2 dBi |
| Height (Max) | 22 in |
| Mounting Type | Magnetic |
| Number of Bands | 1 |
| Power - Max | 200 W |
| VSWR | 1 |
